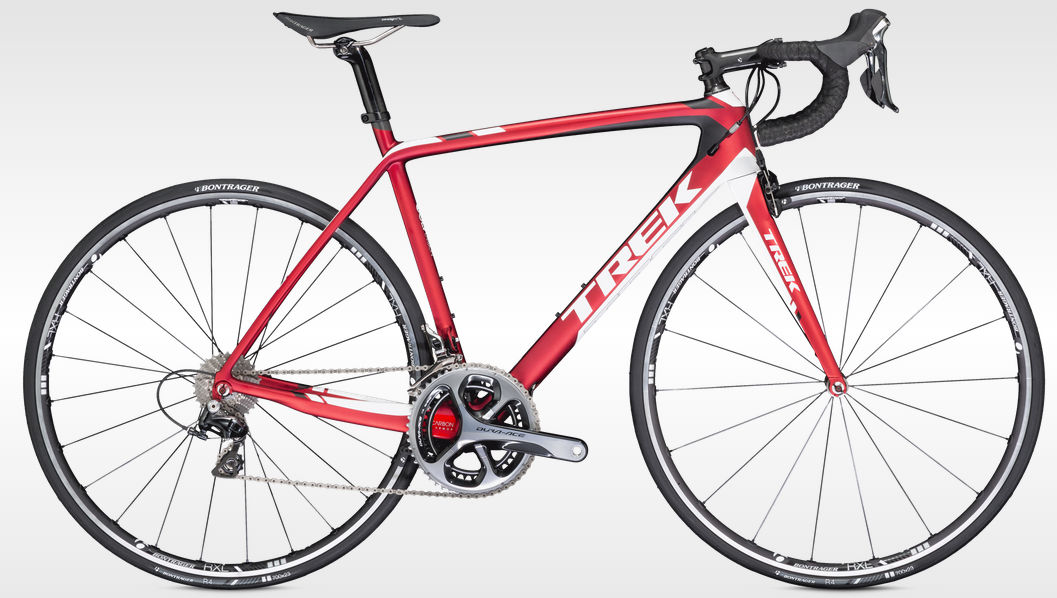

2015 Trek Madone 7-Series H1 geometry
Full frame geometry for the 2015 Trek Madone 7-Series H1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 509 | 388 | 74.6 | 72.8 | 100 | 528 | 453 | 706 | 72 | 407 | 971 | 45 | 58 |
| 52 | 519 | 392 | 74.2 | 73 | 110 | 539 | 483 | 727 | 72 | 407 | 976 | 45 | 56 |
| 54 | 531 | 396 | 73.7 | 73 | 125 | 551 | 501 | 743 | 70 | 407 | 985 | 45 | 56 |
| 56 | 546 | 400 | 73.3 | 73 | 140 | 564 | 525 | 762 | 70 | 407 | 993 | 45 | 56 |
| 58 | 569 | 405 | 73 | 73.8 | 160 | 579 | 553 | 786 | 70 | 407 | 992 | 40 | 57 |
| 60 | 586 | 409 | 72.8 | 73.9 | 180 | 591 | 573 | 806 | 68 | 410 | 1005 | 40 | 56 |
| 62 | 606 | 413 | 72.5 | 73.9 | 200 | 603 | 593 | 824 | 68 | 410 | 1014 | 40 | 56 |
All measurements in millimetres unless marked (°) for angles.
