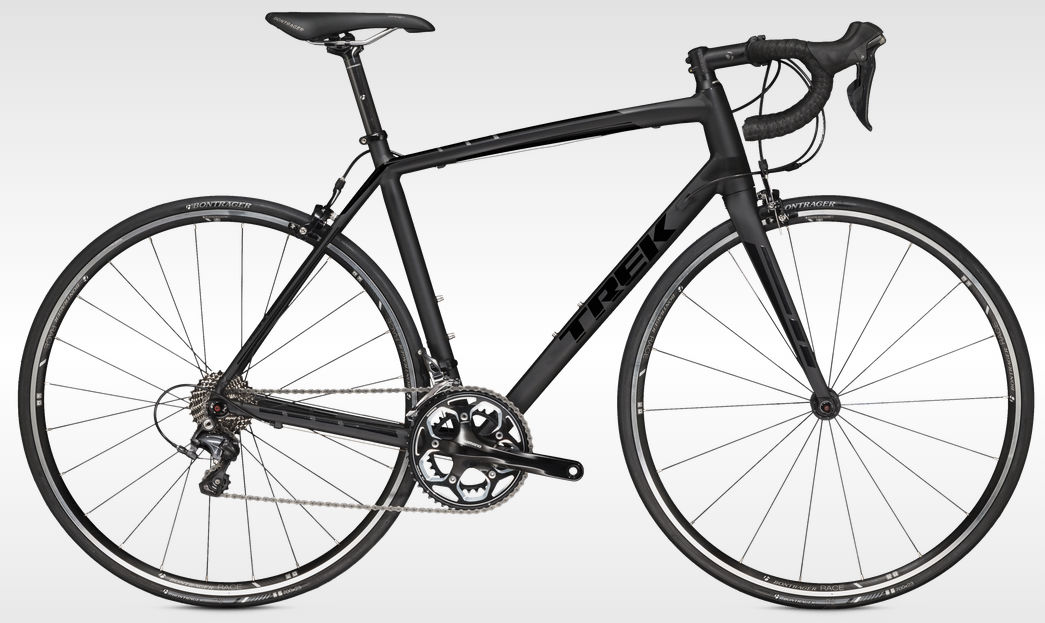

2015 Trek Madone 2-Series geometry
Full frame geometry for the 2015 Trek Madone 2-Series, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 547 | 379 | 74.2 | 72.8 | 140 | 534 | 493 | 747 | 72 | 407 | 973 | 45 | 58 |
| 54 | 555 | 381 | 73.7 | 73 | 150 | 543 | 506 | 758 | 70 | 407 | 978 | 45 | 56 |
| 56 | 577 | 387 | 73.3 | 73.5 | 170 | 560 | 533 | 781 | 70 | 407 | 980 | 40 | 58 |
| 58 | 598 | 391 | 73 | 73.8 | 190 | 574 | 553 | 800 | 70 | 407 | 987 | 40 | 57 |
| 60 | 615 | 395 | 72.8 | 73.9 | 210 | 586 | 573 | 819 | 68 | 410 | 1000 | 40 | 56 |
| 62 | 634 | 398 | 72.5 | 73.9 | 230 | 598 | 593 | 837 | 68 | 410 | 1008 | 40 | 56 |
All measurements in millimetres unless marked (°) for angles.
