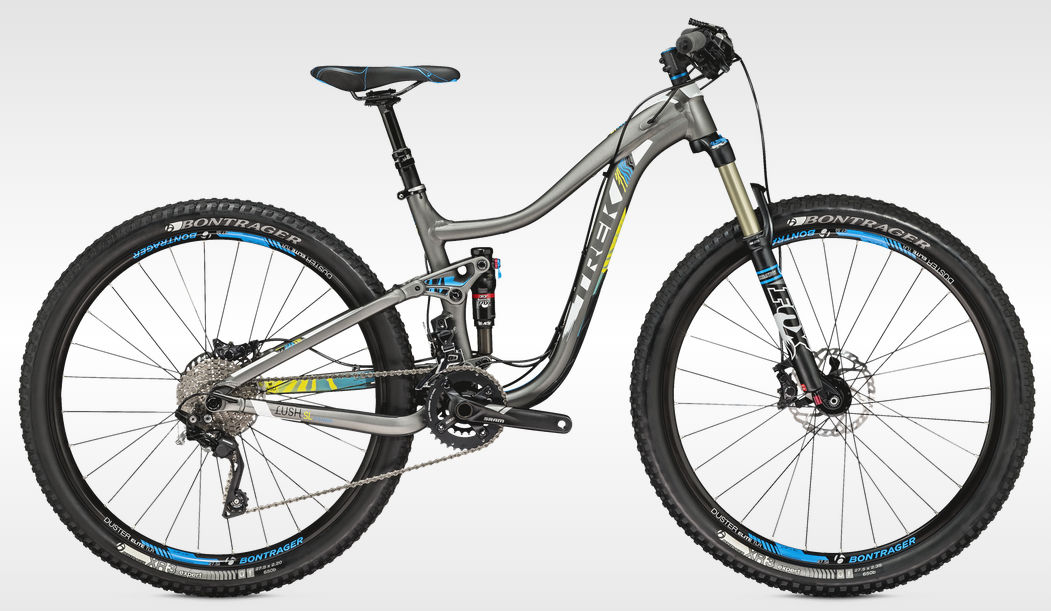

2015 Trek Lush geometry
Full frame geometry for the 2015 Trek Lush, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 559 | 370 | 74 | 68 | 95 | 530 | 355 | 691 | 15 | 637 | 433 | 1070 | 44 | 94 |
| 15.5 | 559 | 390 | 74 | 68 | 95 | 550 | 394 | 688 | 15 | 657 | 433 | 1090 | 44 | 94 |
| 17 | 568 | 417 | 74 | 68 | 105 | 580 | 406 | 687 | 15 | 688 | 433 | 1121 | 44 | 94 |
| 18.5 | 582 | 438 | 74 | 68 | 120 | 605 | 445 | 690 | 15 | 714 | 433 | 1147 | 44 | 94 |
All measurements in millimetres unless marked (°) for angles.
