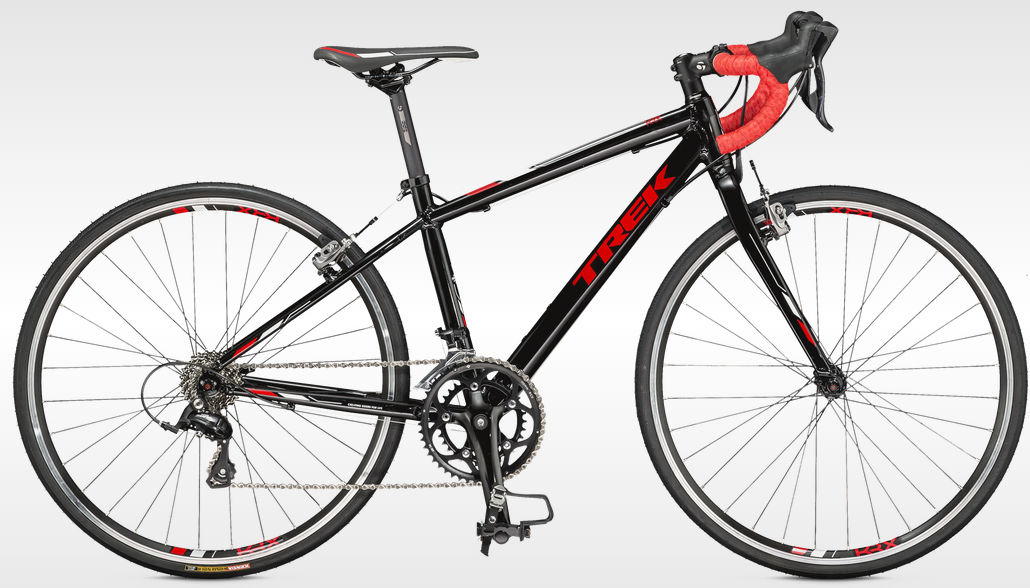

2015 Trek KRX geometry
Full frame geometry for the 2015 Trek KRX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 39 | 498 | 336 | 75 | 70 | 100 | 473 | 390 | 676 | 60 | 415 | 978 | 55 | 59 |
All measurements in millimetres unless marked (°) for angles.
