2015 Trek · YH

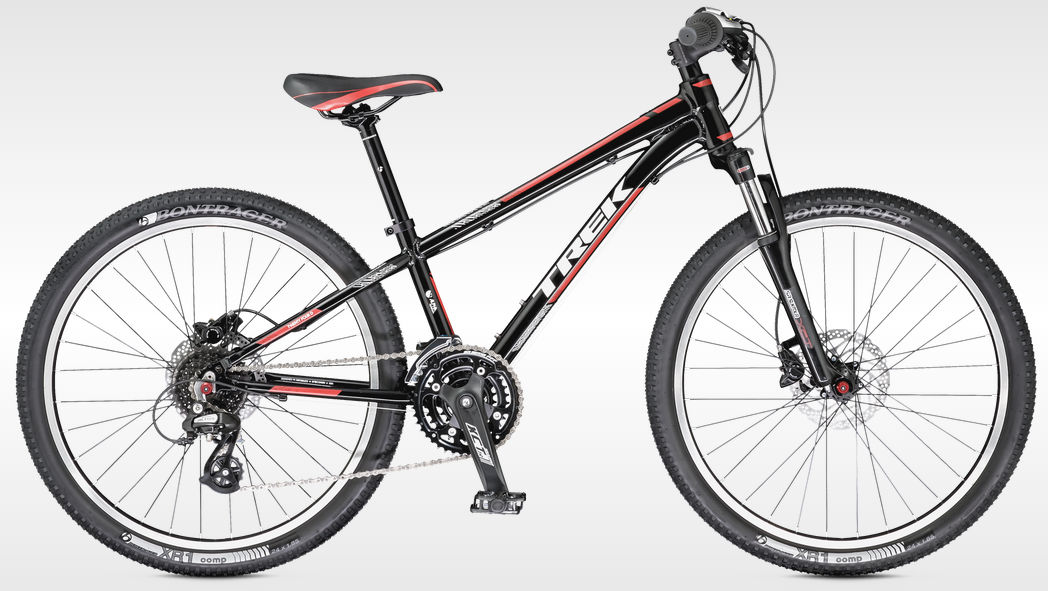

2015 Trek Kids Superfly 24 Disc geometry
Full frame geometry for the 2015 Trek Kids Superfly 24 Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11.4 | 482 | 373 | 72 | 70 | 105 | 529 | 290 | 605 | 38 | 583 | 400 | 980 | 45 | 61 |
All measurements in millimetres unless marked (°) for angles.
