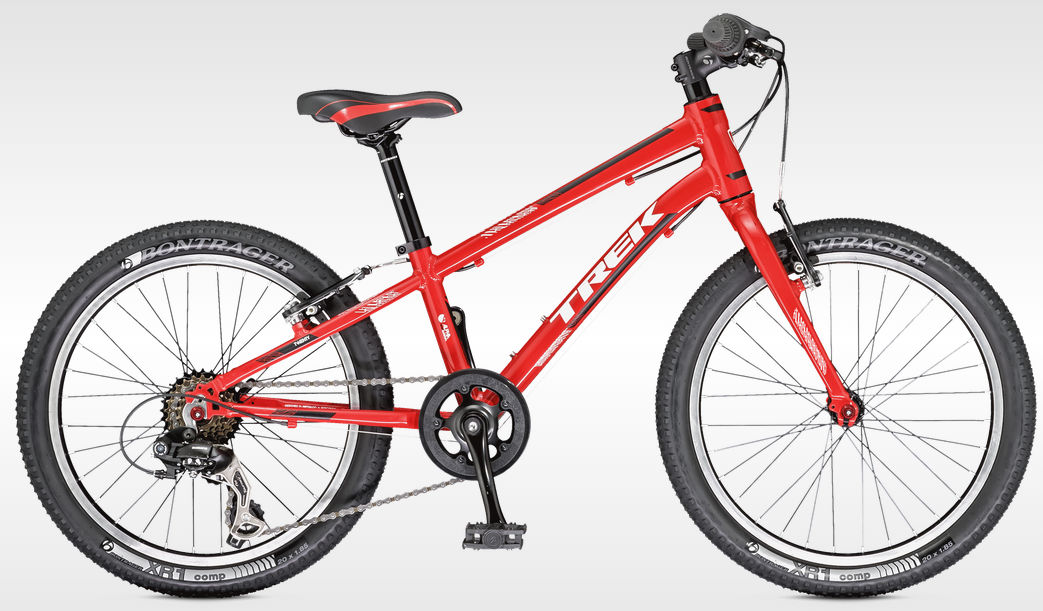

2015 Trek Kids Superfly 20 geometry
Full frame geometry for the 2015 Trek Kids Superfly 20, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 427 | 306 | 72 | 70 | 135 | 445 | 255 | 518 | 15 | 501 | 363 | 863 | 42 | 48 |
All measurements in millimetres unless marked (°) for angles.
