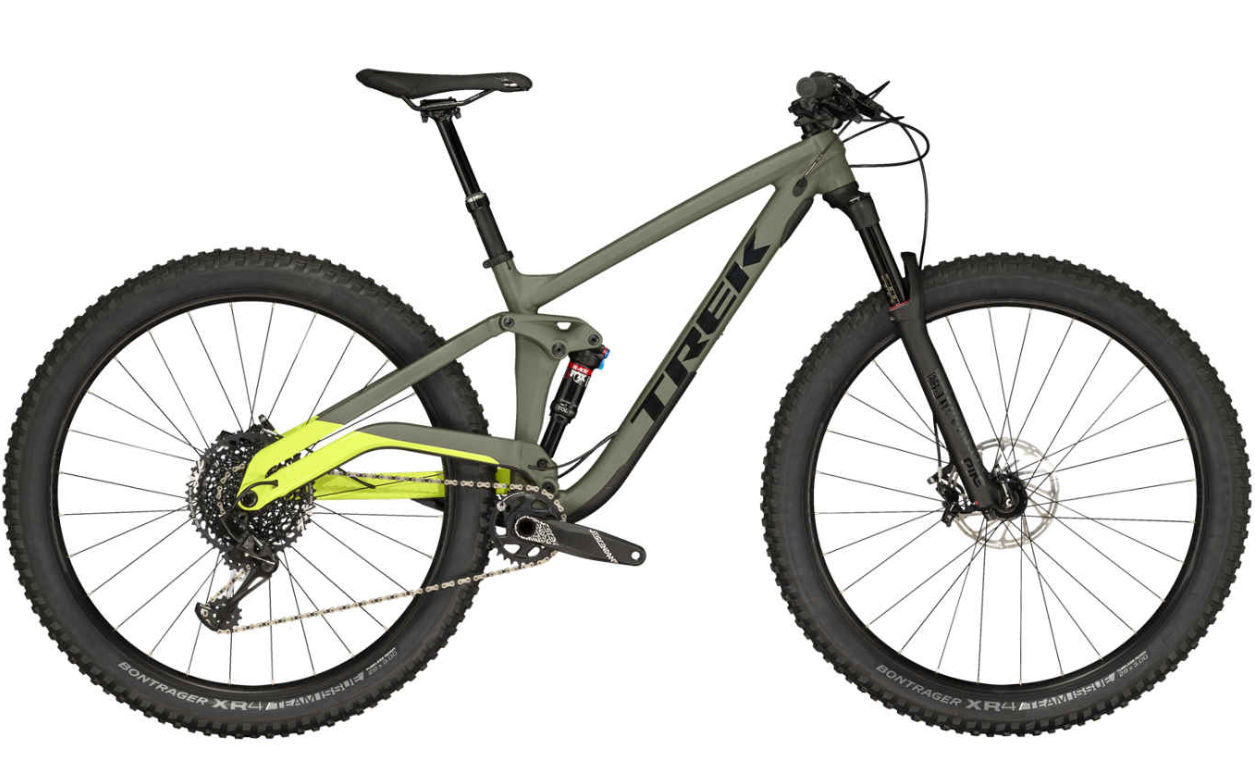

2018 Trek Full Stache geometry
Full frame geometry for the 2018 Trek Full Stache, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 614 | 484 | 75.9 | 67.4 | 90 | 616 | 470 | 750 | 42 | 427 | 1205 | 108 |
| M | 614 | 454 | 75.9 | 67.4 | 90 | 586 | 419 | 769 | 42 | 427 | 1175 | 108 |
| XL | 632 | 504 | 75.9 | 67.4 | 110 | 645 | 521 | 760 | 42 | 427 | 1232 | 108 |
All measurements in millimetres unless marked (°) for angles.
