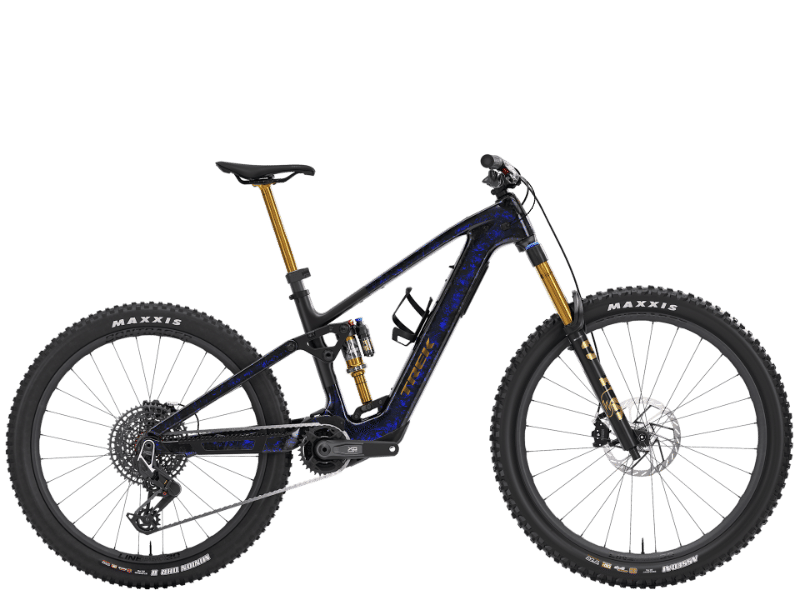

2026 Trek Fuel+ MX Gen 2 geometry
Full frame geometry for the 2026 Trek Fuel+ MX Gen 2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 627 | 456 | 72.3 | 64.2 | 110 | 590 | 400 | 752 | 31 | 795 | 440 | 1234 | 44 | 132 |
| S | 627 | 426 | 72.3 | 64.2 | 110 | 560 | 370 | 758 | 31 | 765 | 440 | 1204 | 44 | 132 |
| L | 641 | 482 | 72.3 | 64.2 | 125 | 619 | 420 | 755 | 31 | 826 | 440 | 1266 | 44 | 132 |
| XL | 654 | 507 | 72.3 | 64.2 | 140 | 652 | 455 | 759 | 31 | 857 | 444 | 1301 | 44 | 132 |
| XXL | 668 | 527 | 72.3 | 64.2 | 155 | 682 | 475 | 769 | 31 | 884 | 449 | 1332 | 44 | 132 |
All measurements in millimetres unless marked (°) for angles.
