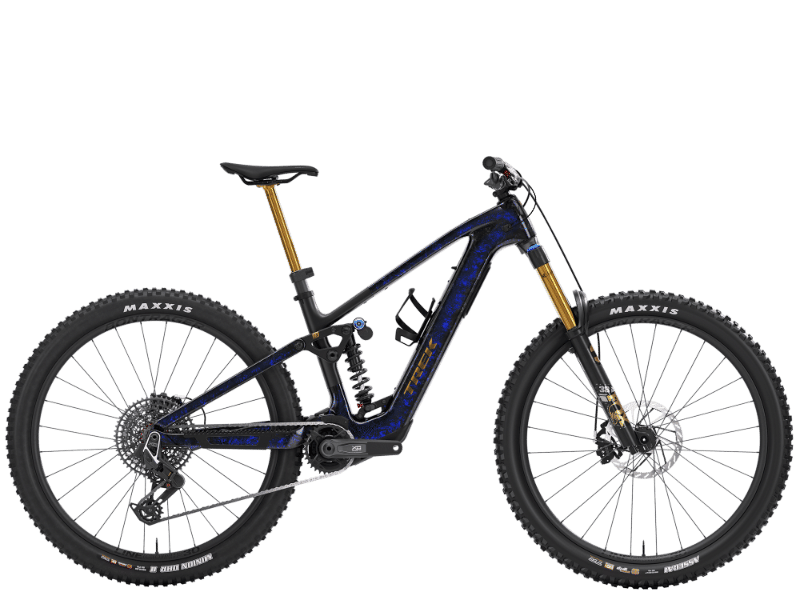

2026 Trek Fuel+ LX Gen 2 geometry
Full frame geometry for the 2026 Trek Fuel+ LX Gen 2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 633 | 448 | 71.5 | 63.4 | 110 | 593 | 400 | 757 | 27 | 801 | 444 | 1243 | 44 | 138 |
| S | 633 | 418 | 71.5 | 63.4 | 110 | 563 | 370 | 763 | 26 | 771 | 444 | 1213 | 44 | 138 |
| L | 647 | 473 | 71.5 | 63.4 | 125 | 622 | 420 | 760 | 27 | 833 | 444 | 1275 | 44 | 137 |
| XL | 661 | 498 | 71.6 | 63.5 | 140 | 655 | 455 | 764 | 27 | 864 | 447 | 1310 | 44 | 137 |
| XXL | 674 | 518 | 71.6 | 63.5 | 155 | 684 | 475 | 773 | 27 | 891 | 452 | 1341 | 44 | 137 |
All measurements in millimetres unless marked (°) for angles.
