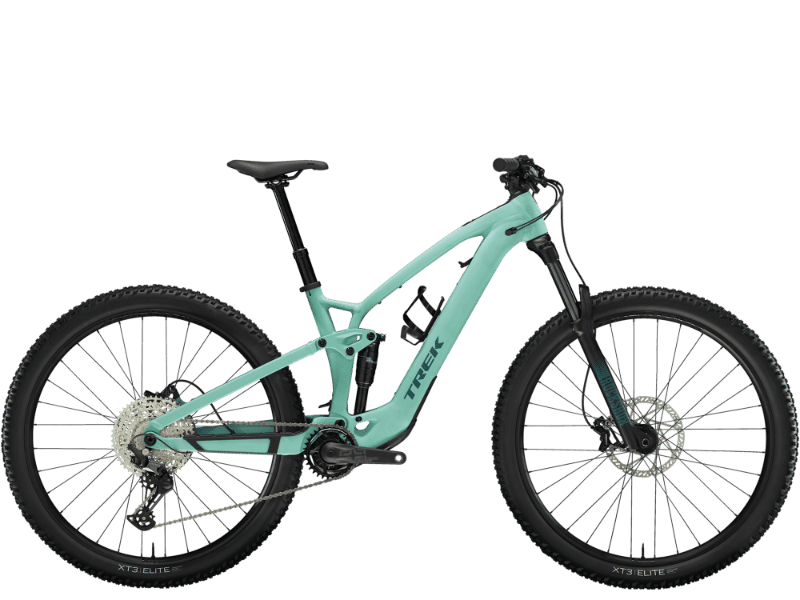

2026 Trek Fuel EXe geometry
Full frame geometry for the 2026 Trek Fuel EXe, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 616 | 434 | 69.3 | 65.3 | 100 | 572 | 380 | 732 | 32 | 752 | 438 | 1187 | 44 | 124 |
| L | 625 | 489 | 70.8 | 65.3 | 110 | 629 | 435 | 739 | 32 | 811 | 438 | 1246 | 44 | 124 |
| M | 625 | 459 | 69.8 | 65.3 | 110 | 599 | 410 | 733 | 32 | 781 | 438 | 1216 | 44 | 124 |
| XL | 634 | 514 | 71.3 | 65.3 | 120 | 656 | 470 | 759 | 32 | 840 | 438 | 1276 | 44 | 124 |
All measurements in millimetres unless marked (°) for angles.
