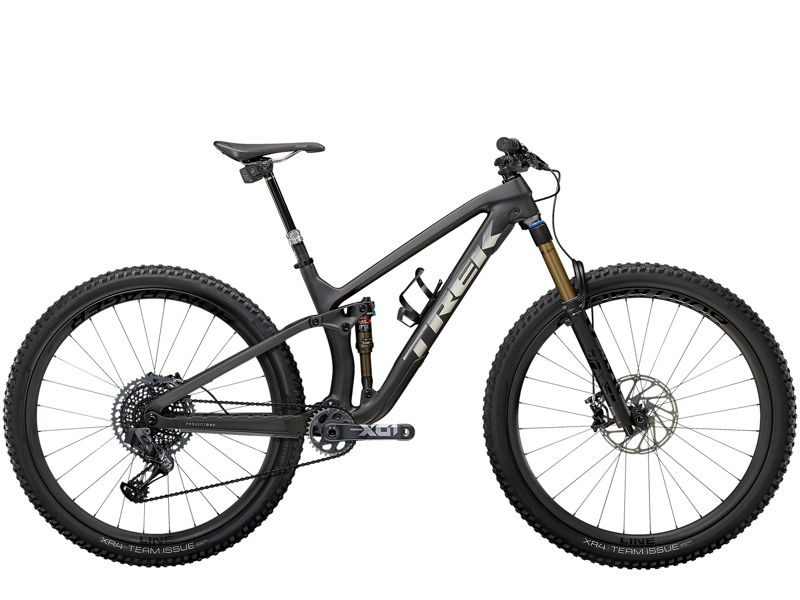

2022 Trek Fuel EX geometry
Full frame geometry for the 2022 Trek Fuel EX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS 27.5 | 563 | 395 | 69 | 66 | 90 | 546 | 695 | 21 | 437 | 1120 | 43 | 111 |
| S 27.5 | 572 | 415 | 69 | 66 | 100 | 568 | 702 | 21 | 437 | 1144 | 43 | 111 |
| M | 609 | 440 | 67.5 | 66 | 100 | 603 | 741 | 34 | 437 | 1179 | 43 | 119 |
| S | 609 | 415 | 67.5 | 66 | 100 | 578 | 702 | 34 | 437 | 1154 | 43 | 119 |
| L | 613 | 470 | 67.5 | 66 | 105 | 634 | 748 | 34 | 437 | 1211 | 43 | 119 |
| ML | 613 | 455 | 67.5 | 66 | 105 | 619 | 746 | 34 | 437 | 1196 | 43 | 119 |
| XL | 627 | 495 | 67.5 | 66 | 120 | 663 | 770 | 34 | 437 | 1242 | 43 | 119 |
All measurements in millimetres unless marked (°) for angles.
