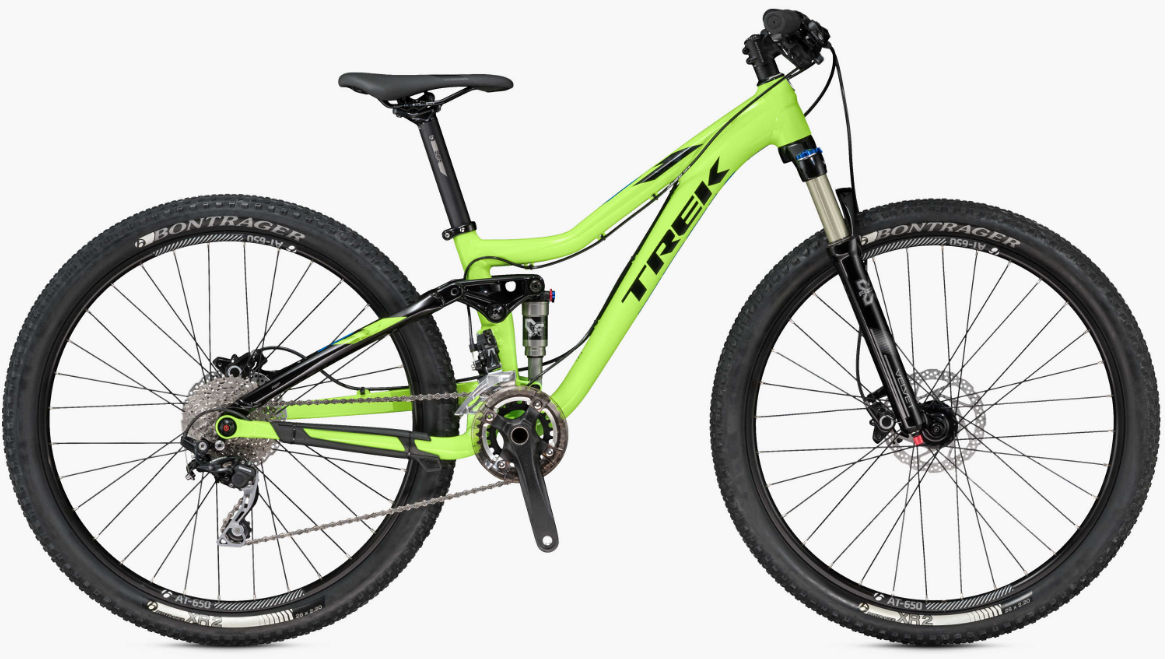

2015 Trek Fuel EX Jr geometry
Full frame geometry for the 2015 Trek Fuel EX Jr, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12.5 | 519 | 381 | 71.4 | 69.4 | 95 | 535 | 318 | 649 | 20 | 1045 | 40 | 84 |
All measurements in millimetres unless marked (°) for angles.
