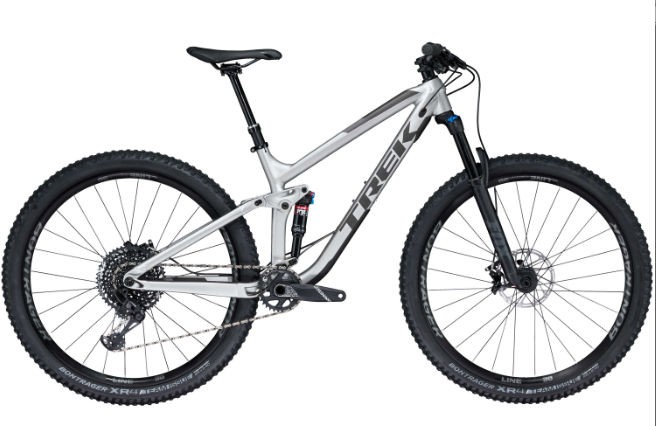

2018 Trek Fuel EX Al MKII geometry

Name: 2018 Trek Fuel EX Al MKII
Brand: Trek

Full frame geometry for the 2018 Trek Fuel EX Al MKII, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
17.5-High	603	433	74.7	67.7	100	600	419	747	30	432	1156	51	99
18.5-High	603	450	74.7	67.7	100	617	440	742	30	432	1173	51	99
19.5-High	603	465	74.7	67.7	100	632	470	737	30	432	1188	51	99
15.5-High	604	399	74.7	67.7	100	565	394	767	30	432	1121	51	99
15.5-Low	609	391	74	67	100	566	394	760	39	433	1122	51	103
17.5-Low	609	426	74	67	100	601	419	740	39	433	1157	51	103
18.5-Low	609	443	74	67	100	618	440	735	39	433	1174	51	103
19.5-Low	609	458	74	67	100	633	470	730	39	433	1189	51	103
21.5-High	612	487	74.7	67.7	110	657	510	747	30	432	1214	51	99
21.5-Low	618	480	74	67	110	657	510	740	39	433	1215	51	103
23-High	644	507	74.6	67.7	145	686	560	787	30	432	1247	51	99
23-Low	650	500	74	67	145	686	560	780	39	433	1248	51	103

All measurements in millimetres unless marked (°) for angles.
