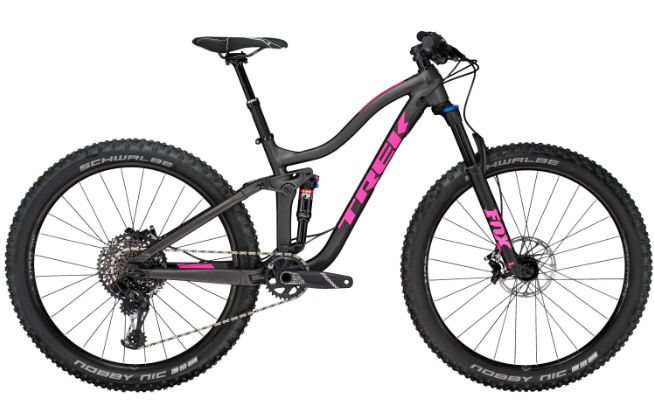

2018 Trek Fuel EX Al MKII Womens geometry
Full frame geometry for the 2018 Trek Fuel EX Al MKII Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14-High | 566 | 378 | 73.9 | 67.7 | 90 | 542 | 356 | 705 | 12 | 433 | 1086 | 43 | 104 |
| 14-Low | 571 | 371 | 73.2 | 67 | 90 | 544 | 356 | 698 | 26 | 434 | 1088 | 43 | 104 |
| 15.5-High | 575 | 394 | 73.9 | 67.7 | 100 | 561 | 394 | 718 | 12 | 433 | 1106 | 43 | 104 |
| 15.5-Low | 580 | 387 | 73.2 | 67 | 100 | 563 | 394 | 711 | 26 | 434 | 1107 | 43 | 104 |
| 17.5-High | 606 | 430 | 74.2 | 67.2 | 100 | 600 | 419 | 747 | 30 | 433 | 1156 | 51 | 102 |
| 18.5-High | 606 | 446 | 74.2 | 67.2 | 100 | 617 | 440 | 742 | 30 | 433 | 1173 | 51 | 102 |
| 17.5-Low | 612 | 422 | 73.5 | 66.6 | 100 | 601 | 419 | 740 | 39 | 432 | 1157 | 51 | 106 |
| 18.5-Low | 612 | 439 | 73.6 | 66.6 | 100 | 618 | 440 | 735 | 39 | 432 | 1174 | 51 | 106 |
All measurements in millimetres unless marked (°) for angles.
