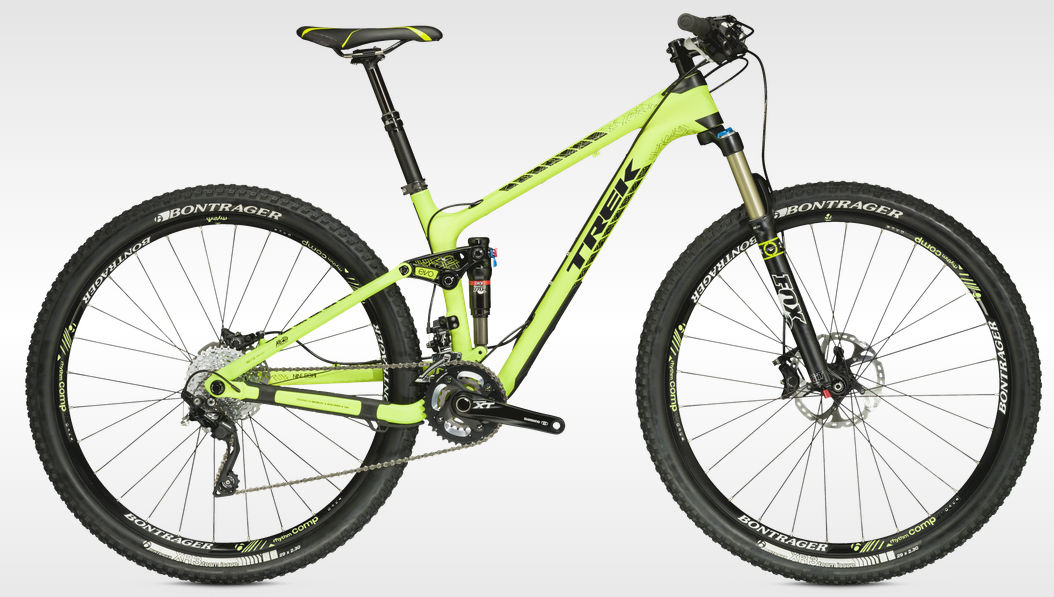

2015 Trek Fuel EX 29 Carbon MKI geometry
Full frame geometry for the 2015 Trek Fuel EX 29 Carbon MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5 | 601 | 390 | 73.6 | 69.5 | 105 | 567 | 394 | 779 | 32 | 658 | 452 | 1108 | 51 | 84 |
| 17.5 | 601 | 421 | 73.6 | 69.5 | 105 | 598 | 420 | 765 | 32 | 689 | 452 | 1139 | 51 | 84 |
| 18.5 | 611 | 432 | 73.6 | 69.5 | 115 | 612 | 445 | 773 | 32 | 704 | 452 | 1154 | 51 | 84 |
| 19.5 | 611 | 447 | 73.6 | 69.5 | 115 | 627 | 470 | 768 | 32 | 719 | 452 | 1169 | 51 | 84 |
| 21.5 | 625 | 466 | 73.6 | 69.5 | 130 | 650 | 508 | 770 | 32 | 743 | 452 | 1193 | 51 | 84 |
| 23 | 639 | 475 | 73.6 | 69.5 | 145 | 663 | 559 | 788 | 32 | 757 | 452 | 1207 | 51 | 84 |
All measurements in millimetres unless marked (°) for angles.
