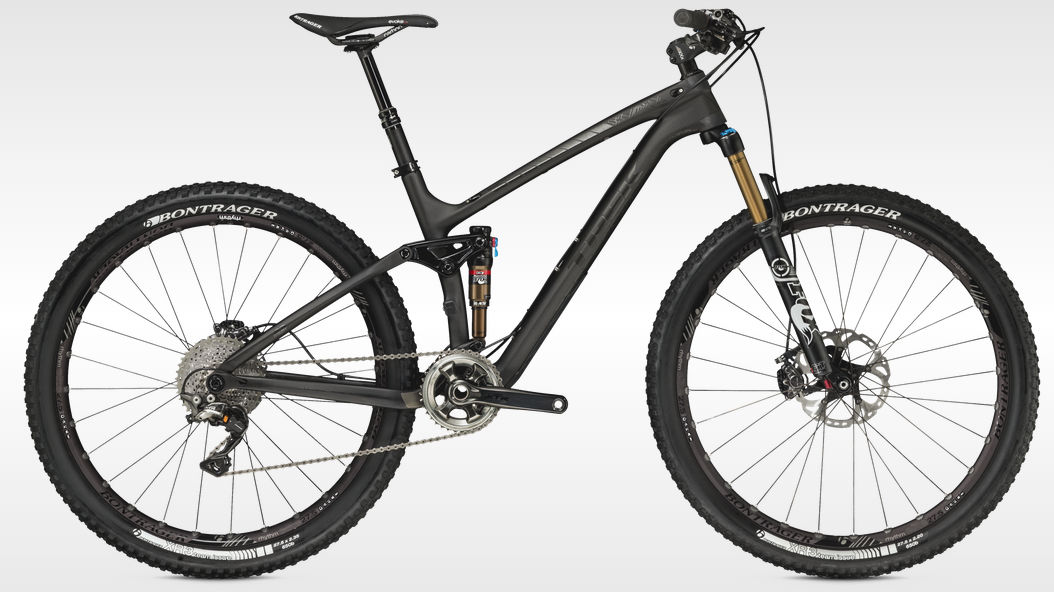

2015 Trek Fuel EX 27.5 MKI geometry
Full frame geometry for the 2015 Trek Fuel EX 27.5 MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5 | 560 | 374 | 73 | 68 | 95 | 555 | 368 | 740 | 17 | 669 | 433 | 1101 | 44 | 84 |
| 18.5 | 574 | 432 | 73 | 68 | 110 | 608 | 445 | 730 | 17 | 723 | 433 | 1155 | 44 | 84 |
| 19.5 | 583 | 449 | 73 | 68 | 120 | 627 | 470 | 740 | 17 | 738 | 433 | 1170 | 44 | 84 |
| 21.5 | 602 | 469 | 73 | 68 | 140 | 653 | 521 | 742 | 17 | 762 | 433 | 1194 | 44 | 84 |
| 17.5 | 655 | 415 | 73 | 68 | 100 | 588 | 419 | 730 | 17 | 705 | 433 | 1137 | 44 | 84 |
All measurements in millimetres unless marked (°) for angles.
