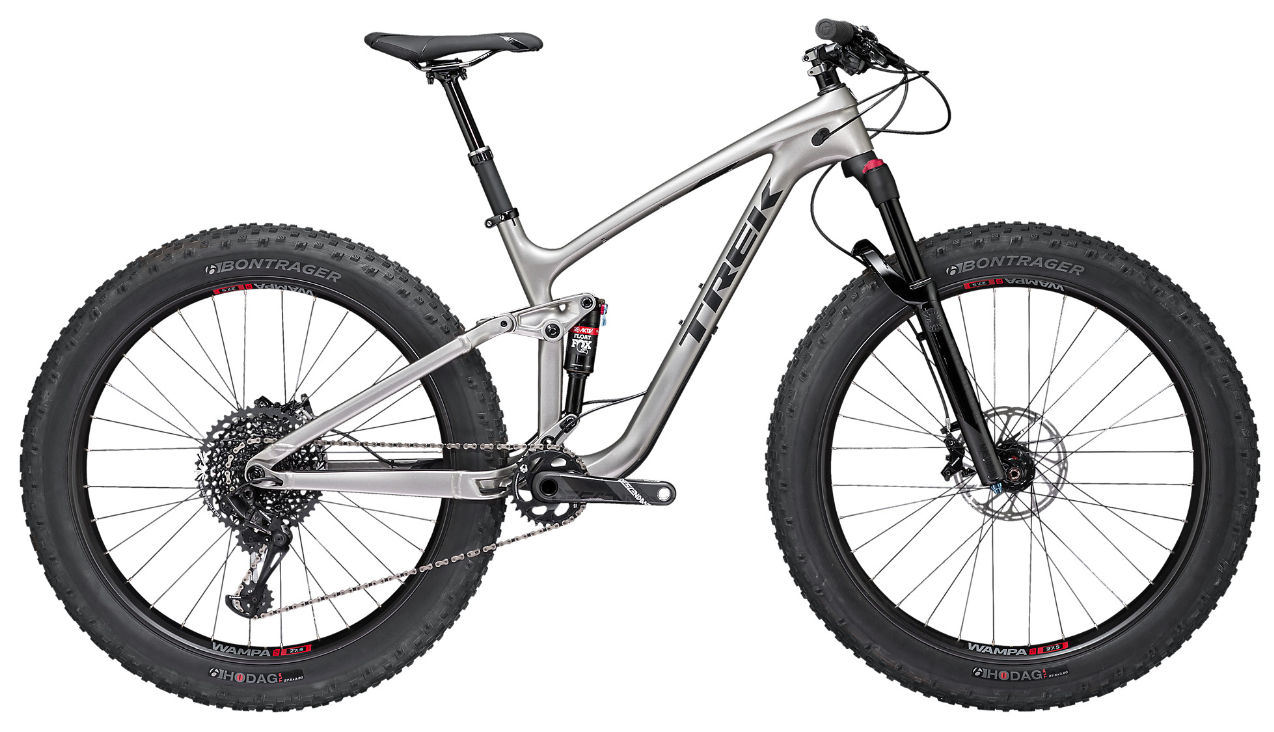

2018 Trek Farley EX geometry
Full frame geometry for the 2018 Trek Farley EX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M/17.5 | 602 | 426 | 67 | 68.8 | 105 | 603 | 420 | 776 | 24 | 706 | 443 | 1148 | 51 | 124 |
| S/15.5 | 602 | 395 | 67 | 68.8 | 105 | 572 | 394 | 798 | 24 | 675 | 443 | 1117 | 51 | 124 |
| L/19.5 | 611 | 452 | 67 | 68.8 | 115 | 632 | 470 | 755 | 24 | 733 | 443 | 1175 | 51 | 124 |
| XL/21.5 | 625 | 471 | 67 | 68.8 | 130 | 655 | 521 | 761 | 24 | 760 | 443 | 1202 | 51 | 124 |
All measurements in millimetres unless marked (°) for angles.
