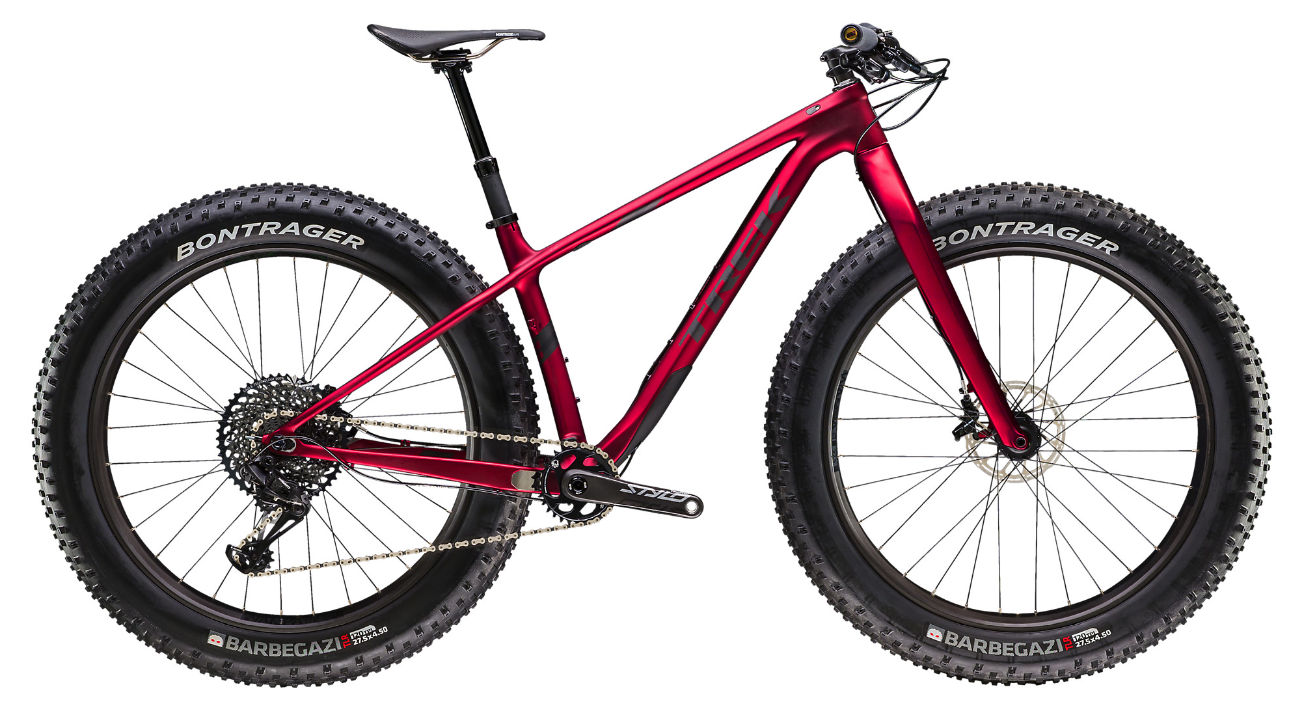

2016 Trek Farley Carbon geometry
Full frame geometry for the 2016 Trek Farley Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5 | 598 | 383 | 73 | 69 | 100 | 566 | 368 | 764 | 65 | 440 | 1078 | 51 | 91 |
| 17.5 | 598 | 410 | 73 | 69 | 100 | 593 | 419 | 750 | 65 | 440 | 1105 | 51 | 91 |
| 19.5 | 617 | 441 | 73 | 69 | 120 | 630 | 470 | 778 | 65 | 440 | 1143 | 51 | 91 |
| 21.5 | 617 | 454 | 73 | 69 | 120 | 643 | 521 | 816 | 65 | 440 | 1156 | 51 | 91 |
All measurements in millimetres unless marked (°) for angles.
