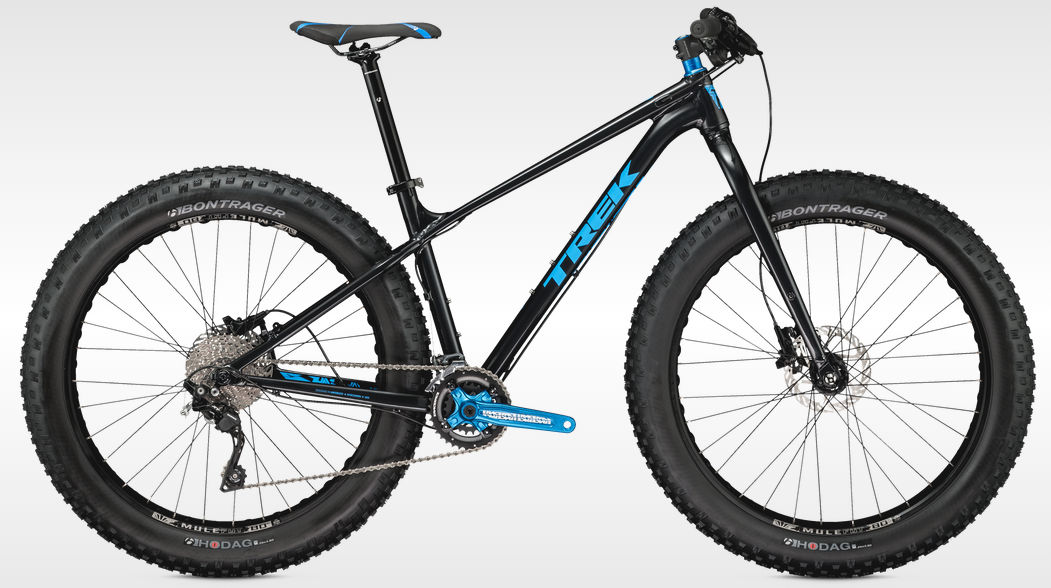

2015 Trek Farley Alloy MKI - Rigid geometry
Full frame geometry for the 2015 Trek Farley Alloy MKI - Rigid, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14.5 | 595 | 372 | 73 | 70 | 100 | 554 | 343 | 757 | 55 | 617 | 440 | 1051 | 46 | 85 |
| 15.5 | 595 | 384 | 73 | 70 | 100 | 566 | 368 | 770 | 55 | 629 | 440 | 1063 | 46 | 85 |
| 17.5 | 595 | 411 | 73 | 70 | 100 | 593 | 419 | 782 | 55 | 656 | 440 | 1090 | 46 | 85 |
| 19.5 | 613 | 442 | 73 | 70 | 120 | 630 | 470 | 817 | 55 | 694 | 440 | 1128 | 46 | 85 |
| 21.5 | 613 | 455 | 73 | 70 | 120 | 643 | 521 | 832 | 55 | 707 | 440 | 1141 | 46 | 85 |
All measurements in millimetres unless marked (°) for angles.
