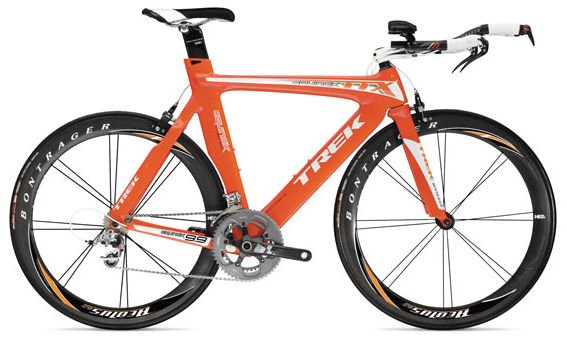

2008 Trek Equinox TTX geometry
Full frame geometry for the 2008 Trek Equinox TTX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 498 | 380 | 76 | 72 | 90 | 504 | 539 | 748 | 68 | 564 | 400 | 955 | 40 | 67 |
| 54 | 515 | 391 | 76 | 73 | 105 | 520 | 569 | 742 | 68 | 571 | 400 | 963 | 40 | 61 |
| 56 | 524 | 419 | 76 | 73 | 115 | 550 | 579 | 752 | 68 | 602 | 400 | 994 | 40 | 61 |
| 58 | 564 | 429 | 76 | 73 | 155 | 570 | 619 | 790 | 68 | 624 | 400 | 1015 | 40 | 61 |
| 60 | 592 | 463 | 76 | 73 | 185 | 610 | 649 | 818 | 68 | 667 | 400 | 1058 | 40 | 61 |
All measurements in millimetres unless marked (°) for angles.
