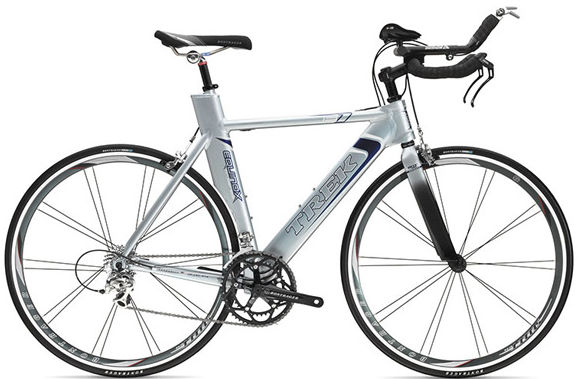

2006 Trek Equinox Al WSD MKI geometry
Full frame geometry for the 2006 Trek Equinox Al WSD MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 498 | 380 | 76 | 72 | 90 | 504 | 539 | 748 | 68 | 564 | 400 | 955 | 40 | 67 |
| 54 | 515 | 391 | 76 | 73 | 105 | 520 | 569 | 776 | 68 | 571 | 400 | 963 | 40 | 61 |
| 56 | 524 | 419 | 76 | 73 | 115 | 550 | 579 | 777 | 68 | 602 | 400 | 994 | 40 | 61 |
All measurements in millimetres unless marked (°) for angles.
