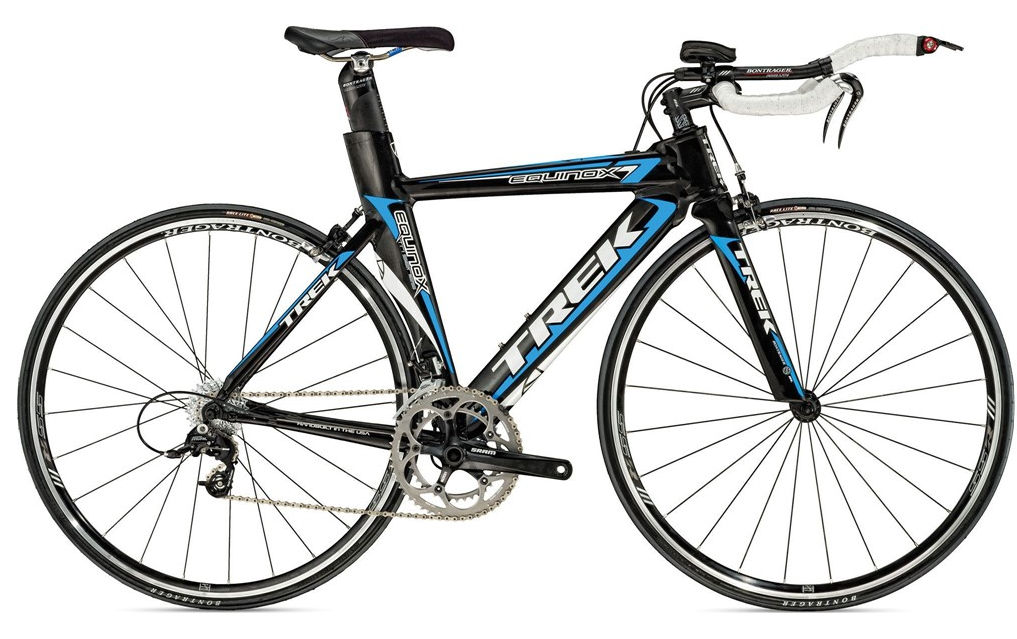

2008 Trek Equinox Al WSD Alpha Red geometry
Full frame geometry for the 2008 Trek Equinox Al WSD Alpha Red, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 485 | 380 | 76 | 72 | 78 | 500 | 530 | 700 | 68 | 560 | 400 | 950 | 40 | 67 |
| 51 | 518 | 381 | 76 | 72 | 113 | 510 | 560 | 726 | 68 | 572 | 400 | 962 | 40 | 67 |
| 54 | 548 | 388 | 76 | 73 | 141 | 525 | 590 | 753 | 68 | 579 | 400 | 970 | 40 | 61 |
All measurements in millimetres unless marked (°) for angles.
