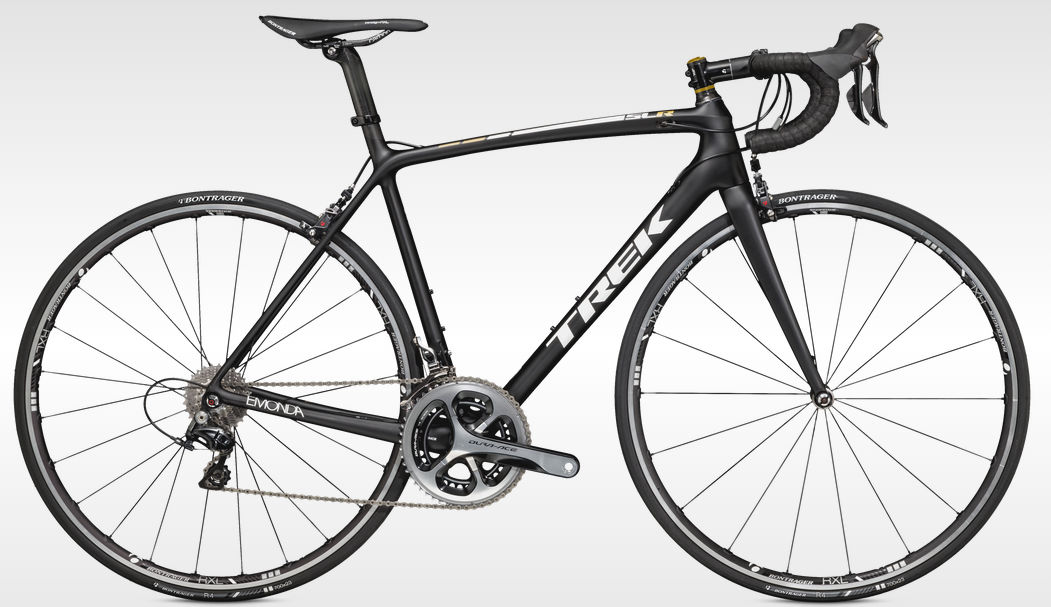

Name: 2015 Trek Emonda SLR H2
Brand: Trek

Full frame geometry for the 2015 Trek Emonda SLR H2, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
44	499	362	74.6	70.4	100	499	682	72	570	410	971	50	68
47	522	369	74.6	71.2	115	513	698	72	570	410	974	45	67
50	535	374	74.6	72.1	130	521	707	72	573	410	974	45	61
52	547	379	74.2	72.8	140	534	729	72	575	410	977	45	57
54	555	381	73.7	73	155	543	742	70	579	410	981	45	56
56	577	387	73.3	73.5	170	560	767	70	580	410	983	40	58
58	596	391	73	73.8	190	573	786	68	587	411	992	40	56
60	615	395	72.8	73.9	210	586	804	68	596	411	1001	40	56
62	634	398	72.5	73.9	230	598	822	68	604	412	1010	40	55
64	654	401	72.3	74	250	610	841	68	612	413	1018	40	55

All measurements in millimetres unless marked (°) for angles.
