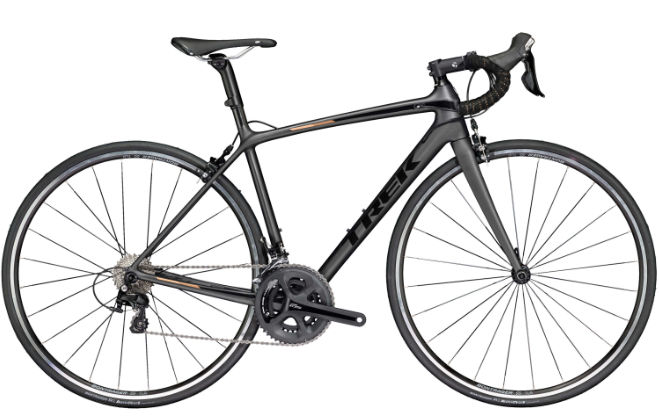

2018 Trek Emonda SL 5 Womens geometry
Full frame geometry for the 2018 Trek Emonda SL 5 Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 522 | 369 | 74.6 | 71.2 | 115 | 513 | 444 | 698 | 72 | 410 | 974 | 67 |
| 50 | 535 | 374 | 74.6 | 72.1 | 130 | 521 | 476 | 707 | 72 | 410 | 974 | 61 |
| 52 | 547 | 379 | 74.2 | 72.8 | 140 | 534 | 493 | 729 | 72 | 410 | 977 | 57 |
| 54 | 555 | 381 | 73.7 | 73 | 155 | 543 | 506 | 742 | 70 | 410 | 981 | 56 |
All measurements in millimetres unless marked (°) for angles.
