2019 Trek Emonda ALR Disc geometry

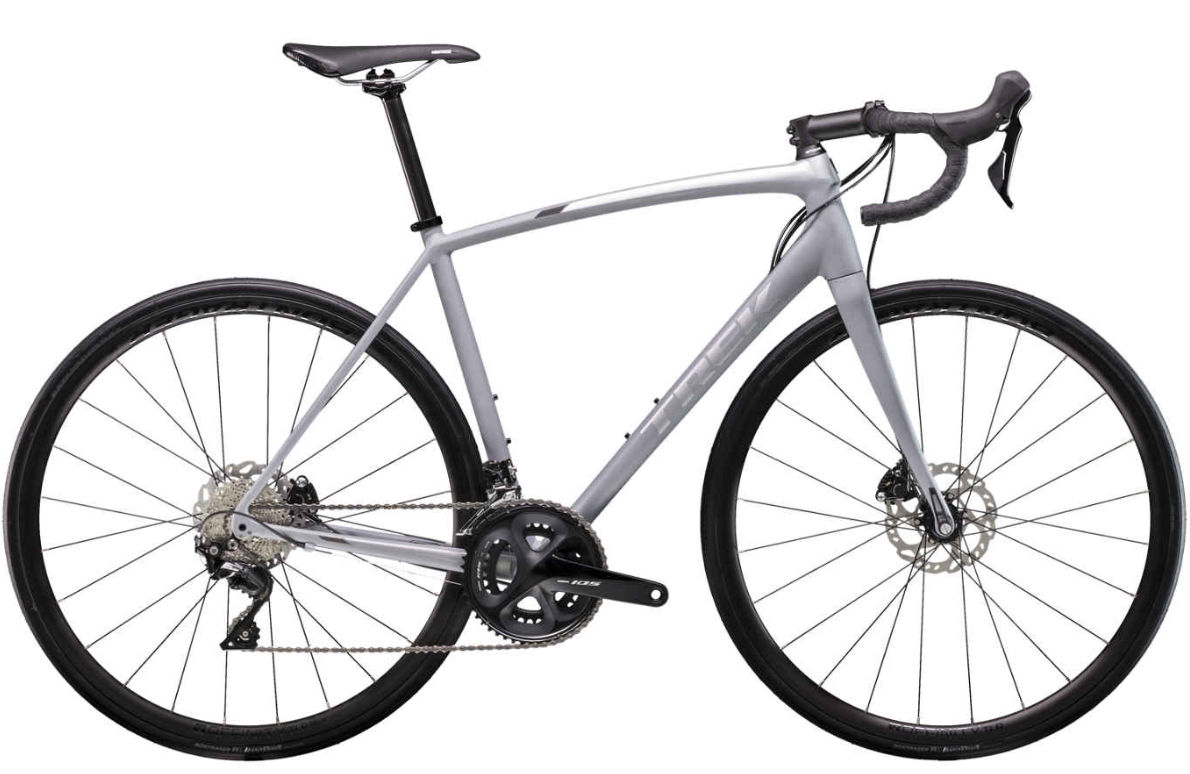

Name: 2019 Trek Emonda ALR Disc
Brand: Trek

Full frame geometry for the 2019 Trek Emonda ALR Disc, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
47	522	369	74.6	71.2	115	513	444	698	72	410	974	45	67
50	535	374	74.6	72.1	130	521	476	707	72	410	974	45	61
52	547	379	74.2	72.8	140	534	493	729	72	410	977	45	57
54	555	381	73.7	73	155	543	506	742	70	410	981	45	56
56	577	387	73.3	73.5	170	560	533	767	70	410	983	40	58
58	596	391	73	73.8	190	573	553	786	68	411	992	40	56
60	615	395	72.8	73.9	210	586	573	804	68	411	1001	40	56
62	634	398	72.5	73.9	230	598	593	822	68	412	1010	40	55
64	654	401	72.3	74	250	610	613	841	68	413	1018	40	55

All measurements in millimetres unless marked (°) for angles.
