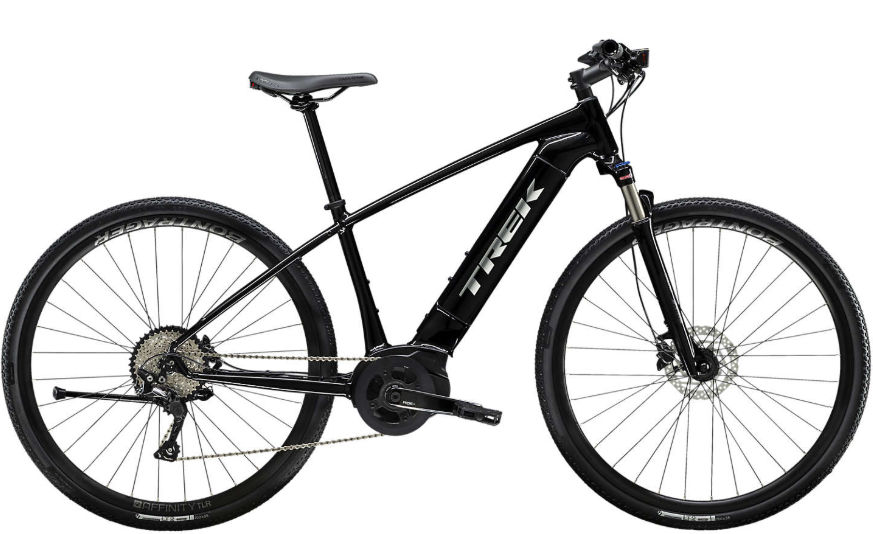

2019 Trek Dual Sport + geometry
Full frame geometry for the 2019 Trek Dual Sport +, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 595 | 410 | 74.5 | 70 | 115 | 575 | 381 | 738 | 60 | 455 | 1091 | 38 | 85 |
| M | 606 | 416 | 74 | 71 | 125 | 590 | 445 | 761 | 60 | 455 | 1095 | 38 | 82 |
| L | 616 | 423 | 73.5 | 71 | 135 | 605 | 508 | 791 | 60 | 455 | 1105 | 38 | 82 |
| XL | 639 | 434 | 72.5 | 72 | 155 | 635 | 571 | 815 | 60 | 455 | 1110 | 38 | 75 |
All measurements in millimetres unless marked (°) for angles.
