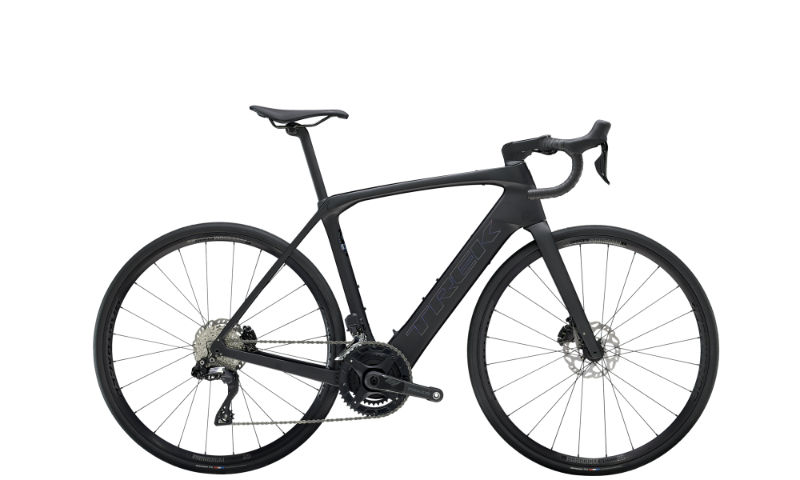

2026 Trek Domane+ SLR geometry
Full frame geometry for the 2026 Trek Domane+ SLR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 546 | 368 | 74.6 | 71.1 | 130 | 519 | 450 | 728 | 80 | 430 | 1007 | 53 | 63 |
| 52 | 561 | 371 | 74.2 | 71.3 | 145 | 530 | 475 | 747 | 80 | 430 | 1013 | 53 | 62 |
| 54 | 575 | 374 | 73.7 | 71.3 | 160 | 542 | 500 | 766 | 80 | 430 | 1021 | 53 | 62 |
| 56 | 591 | 377 | 73.3 | 71.9 | 175 | 554 | 525 | 788 | 78 | 430 | 1018 | 48 | 63 |
| 58 | 611 | 380 | 73 | 72 | 195 | 567 | 548 | 808 | 78 | 430 | 1027 | 48 | 63 |
| 60 | 632 | 383 | 72.8 | 72.1 | 220 | 579 | 567 | 829 | 75 | 430 | 1037 | 48 | 62 |
| 62 | 656 | 386 | 72.5 | 72.1 | 245 | 593 | 586 | 847 | 75 | 430 | 1047 | 48 | 62 |
All measurements in millimetres unless marked (°) for angles.
