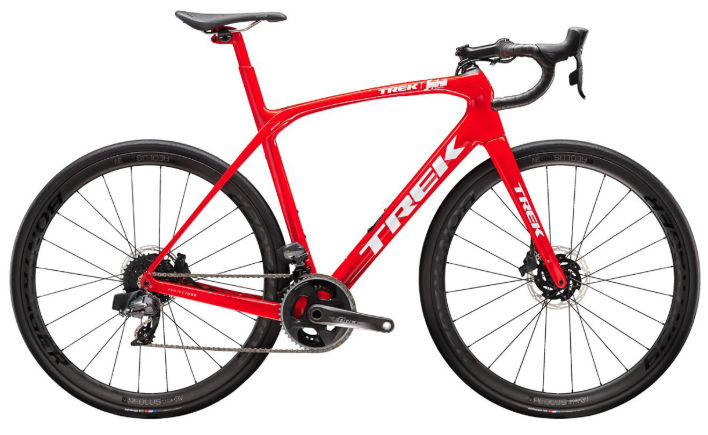

2019 Trek Domane SLR MKIII H1.5 geometry
Full frame geometry for the 2019 Trek Domane SLR MKIII H1.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 54 | 541 | 386 | 73.7 | 72.6 | 118 | 544 | 501 | 751 | 80 | 591 | 420 | 998 | 53 | 54 |
| 56 | 563 | 391 | 73.3 | 72.8 | 144 | 560 | 525 | 775 | 78 | 602 | 420 | 1010 | 53 | 53 |
| 58 | 581 | 396 | 73 | 72.8 | 163 | 573 | 553 | 797 | 78 | 612 | 425 | 1025 | 53 | 53 |
| 60 | 601 | 400 | 72.8 | 72.8 | 186 | 586 | 573 | 818 | 75 | 623 | 425 | 1037 | 53 | 53 |
All measurements in millimetres unless marked (°) for angles.
