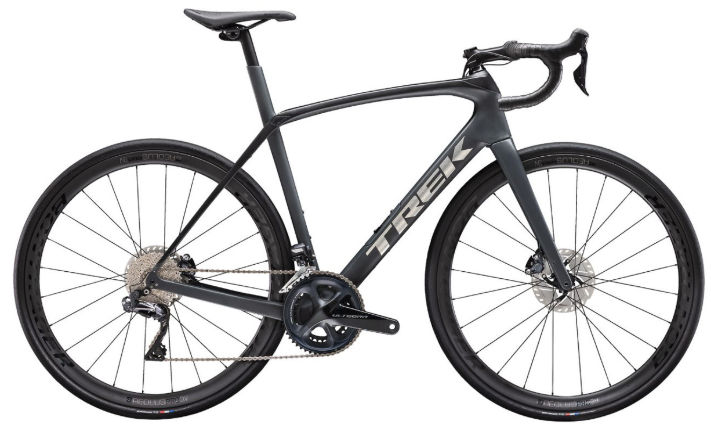

2019 Trek Domane SL MKIII geometry
Full frame geometry for the 2019 Trek Domane SL MKIII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 510 | 360 | 74.6 | 70.3 | 95 | 501 | 390 | 657 | 80 | 576 | 420 | 983 | 53 | 66 |
| 47 | 527 | 364 | 74.6 | 71 | 110 | 509 | 420 | 686 | 80 | 579 | 420 | 986 | 53 | 61 |
| 50 | 546 | 368 | 74.6 | 71.1 | 130 | 519 | 450 | 716 | 80 | 589 | 420 | 996 | 53 | 60 |
| 52 | 561 | 371 | 74.2 | 71.3 | 145 | 530 | 475 | 735 | 80 | 596 | 420 | 1003 | 53 | 59 |
| 54 | 575 | 374 | 73.7 | 71.3 | 160 | 542 | 500 | 754 | 80 | 603 | 420 | 1010 | 53 | 59 |
| 56 | 591 | 377 | 73.3 | 71.9 | 175 | 554 | 525 | 776 | 78 | 600 | 420 | 1008 | 48 | 61 |
| 58 | 611 | 380 | 73 | 72 | 195 | 567 | 548 | 796 | 78 | 609 | 425 | 1022 | 48 | 60 |
| 60 | 632 | 383 | 72.8 | 72.1 | 220 | 579 | 567 | 817 | 75 | 618 | 425 | 1032 | 48 | 59 |
| 62 | 656 | 386 | 72.5 | 72.1 | 245 | 593 | 586 | 835 | 75 | 628 | 425 | 1042 | 48 | 59 |
All measurements in millimetres unless marked (°) for angles.
