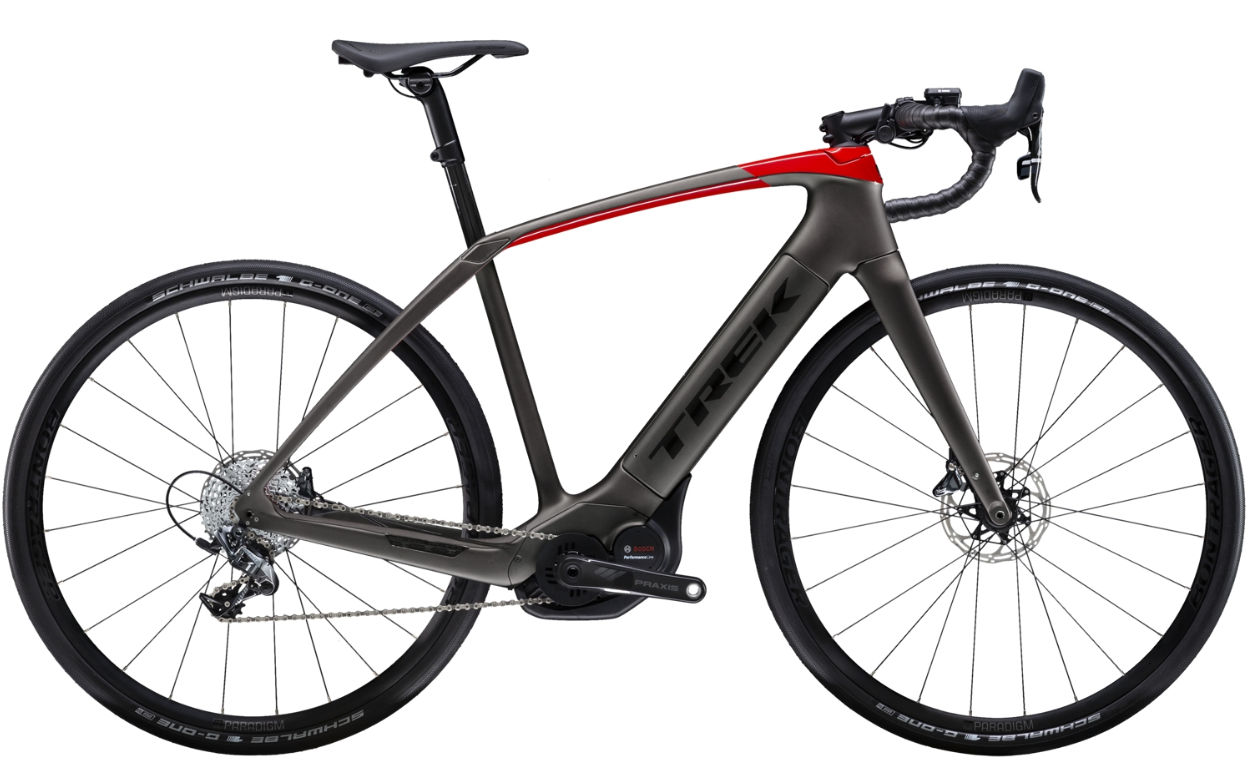

2019 Trek Domane+ HP geometry
Full frame geometry for the 2019 Trek Domane+ HP, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 561 | 371 | 74.2 | 72.1 | 126 | 529 | 475 | 752 | 78 | 455 | 1030 | 53 | 58 |
| 54 | 575 | 374 | 73.7 | 72.1 | 141 | 541 | 500 | 770 | 78 | 455 | 1038 | 53 | 58 |
| 56 | 591 | 377 | 73.3 | 71.9 | 161 | 554 | 525 | 791 | 78 | 455 | 1048 | 53 | 58 |
| 58 | 611 | 380 | 73 | 72 | 181 | 567 | 548 | 811 | 78 | 455 | 1057 | 53 | 58 |
| 60 | 632 | 383 | 72.1 | 72.1 | 205 | 579 | 567 | 829 | 78 | 455 | 1066 | 53 | 58 |
All measurements in millimetres unless marked (°) for angles.
