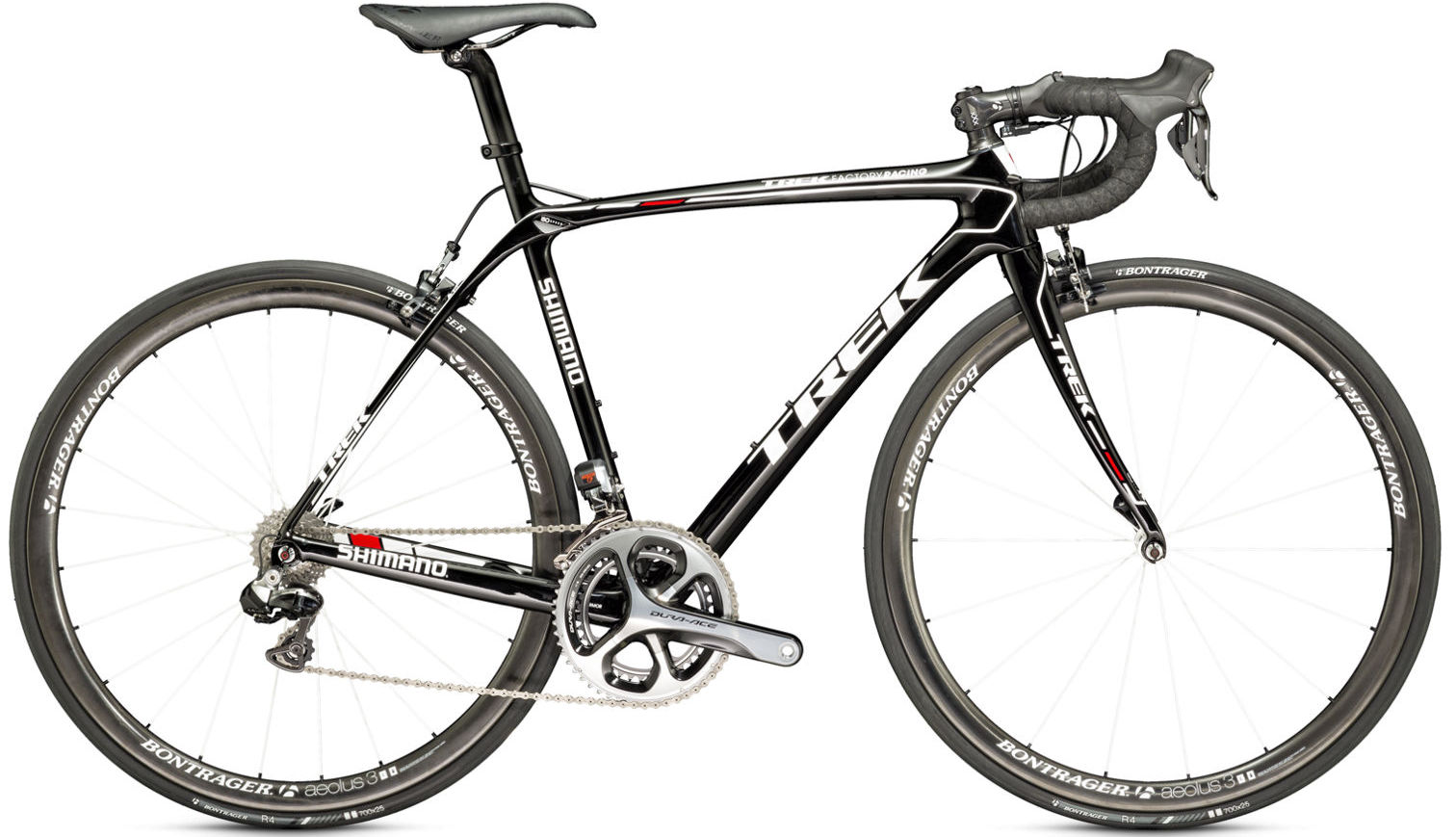

2014 Trek Domane Classics Edition geometry
Full frame geometry for the 2014 Trek Domane Classics Edition, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 54 | 526 | 396 | 73.7 | 72.6 | 103 | 550 | 540 | 732 | 80 | 597 | 420 | 1004 | 53 | 52 |
| 56 | 540 | 400 | 73.3 | 72.8 | 120 | 562 | 560 | 752 | 78 | 604 | 420 | 1012 | 53 | 51 |
| 58 | 562 | 405 | 73 | 72.8 | 143 | 576 | 580 | 778 | 78 | 616 | 425 | 1029 | 53 | 51 |
| 60 | 582 | 409 | 72.8 | 72.8 | 166 | 589 | 600 | 799 | 75 | 626 | 425 | 1040 | 53 | 51 |
| 62 | 601 | 413 | 72.5 | 72.8 | 186 | 602 | 620 | 817 | 75 | 636 | 425 | 1050 | 53 | 51 |
All measurements in millimetres unless marked (°) for angles.
