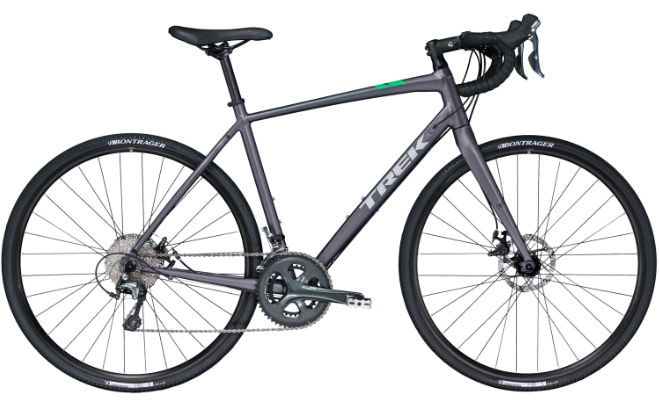

2018 Trek CrossRip 2 geometry
Full frame geometry for the 2018 Trek CrossRip 2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 560 | 387 | 74 | 70.5 | 121 | 524 | 520 | 756 | 74 | 435 | 1037 | 72 |
| 54 | 582 | 396 | 73.5 | 70.5 | 143 | 554 | 540 | 775 | 74 | 435 | 1043 | 72 |
| 56 | 596 | 402 | 73 | 71 | 160 | 570 | 560 | 794 | 70 | 435 | 1051 | 69 |
| 58 | 611 | 406 | 73 | 71.5 | 173 | 578 | 580 | 810 | 70 | 435 | 1054 | 69 |
All measurements in millimetres unless marked (°) for angles.
