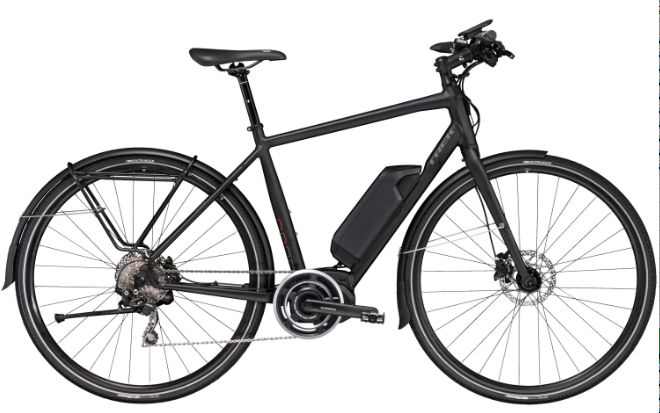

2018 Trek Conduit+ geometry
Full frame geometry for the 2018 Trek Conduit+, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 560 | 391 | 74.5 | 70.5 | 132 | 547 | 381 | 709 | 65 | 465 | 1075 | 78 |
| 17.5 | 574 | 384 | 74 | 70.5 | 147 | 548 | 444 | 749 | 65 | 465 | 1072 | 78 |
| 20 | 597 | 388 | 73.5 | 71.5 | 167 | 564 | 508 | 791 | 65 | 465 | 1074 | 71 |
| 22.5 | 620 | 392 | 73 | 72.5 | 187 | 581 | 571 | 835 | 65 | 465 | 1075 | 65 |
All measurements in millimetres unless marked (°) for angles.
