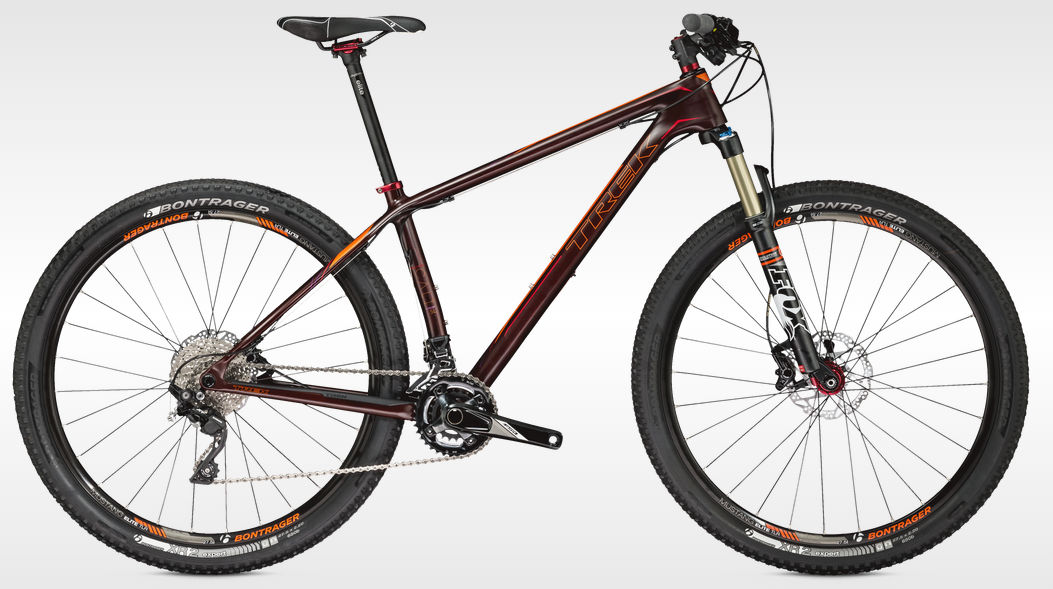

2015 Trek Cali Carbon geometry
Full frame geometry for the 2015 Trek Cali Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13.5 | 563 | 370 | 73 | 69 | 100 | 541 | 343 | 710 | 48 | 617 | 425 | 1037 | 44 | 87 |
| 15.5 | 583 | 372 | 73 | 69.3 | 100 | 558 | 368 | 721 | 48 | 633 | 425 | 1053 | 44 | 85 |
| 17 | 600 | 412 | 72.5 | 69.3 | 100 | 602 | 419 | 767 | 58 | 674 | 435 | 1103 | 51 | 85 |
| 18.5 | 601 | 427 | 72.3 | 69.6 | 100 | 620 | 444 | 779 | 58 | 687 | 435 | 1116 | 51 | 83 |
All measurements in millimetres unless marked (°) for angles.
