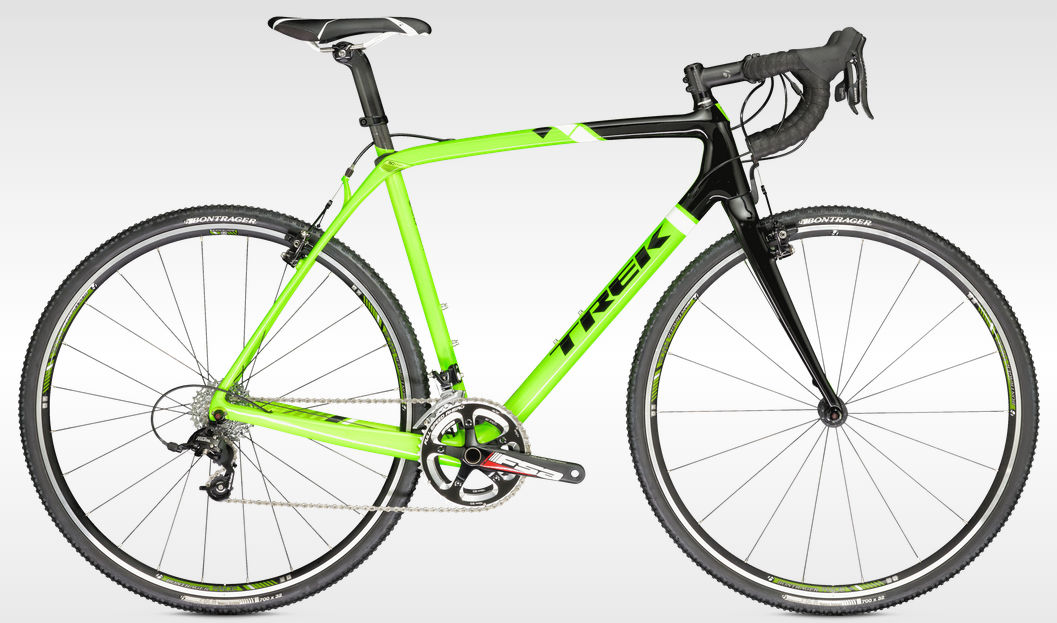

2015 Trek Boone geometry
Full frame geometry for the 2015 Trek Boone, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 534 | 375 | 75 | 71 | 110 | 518 | 476 | 747 | 70 | 425 | 1001 | 45 | 74 |
| 52 | 547 | 379 | 74.5 | 71.5 | 123 | 531 | 493 | 761 | 70 | 425 | 1005 | 45 | 71 |
| 54 | 562 | 383 | 74 | 72 | 138 | 544 | 513 | 779 | 68 | 425 | 1010 | 45 | 67 |
| 56 | 580 | 387 | 73.6 | 72 | 157 | 558 | 533 | 796 | 68 | 425 | 1020 | 45 | 67 |
| 58 | 597 | 391 | 73.3 | 72.3 | 176 | 570 | 553 | 816 | 65 | 425 | 1028 | 45 | 66 |
| 61 | 624 | 397 | 73 | 72.3 | 205 | 588 | 583 | 843 | 65 | 425 | 1043 | 45 | 66 |
All measurements in millimetres unless marked (°) for angles.
