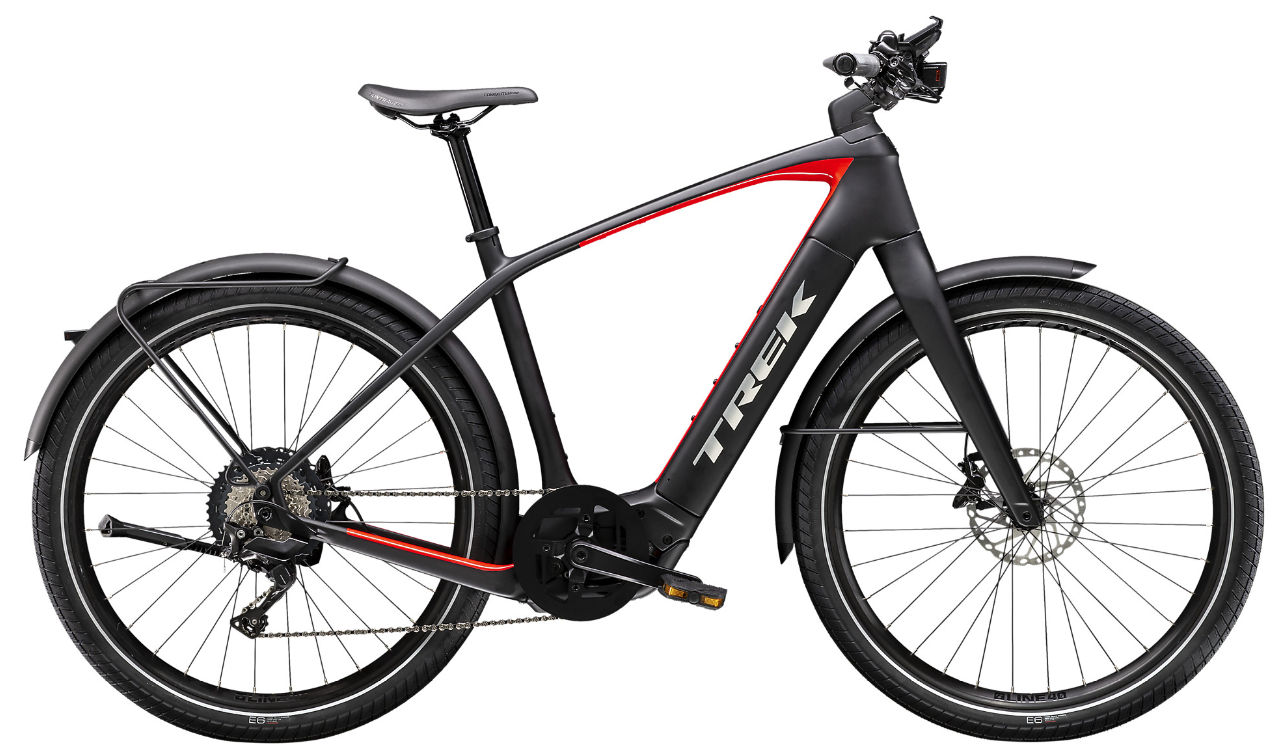

2019 Trek Allant+ Carbon geometry
Full frame geometry for the 2019 Trek Allant+ Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 607 | 408 | 73 | 69.5 | 150 | 594 | 500 | 783 | 60 | 664 | 470 | 1127 | 45 | 86 |
| L | 633 | 412 | 73 | 70 | 175 | 605 | 550 | 821 | 60 | 671 | 470 | 1134 | 45 | 83 |
| XL | 663 | 415 | 73 | 70.5 | 205 | 618 | 600 | 865 | 60 | 679 | 470 | 1143 | 45 | 79 |
All measurements in millimetres unless marked (°) for angles.
