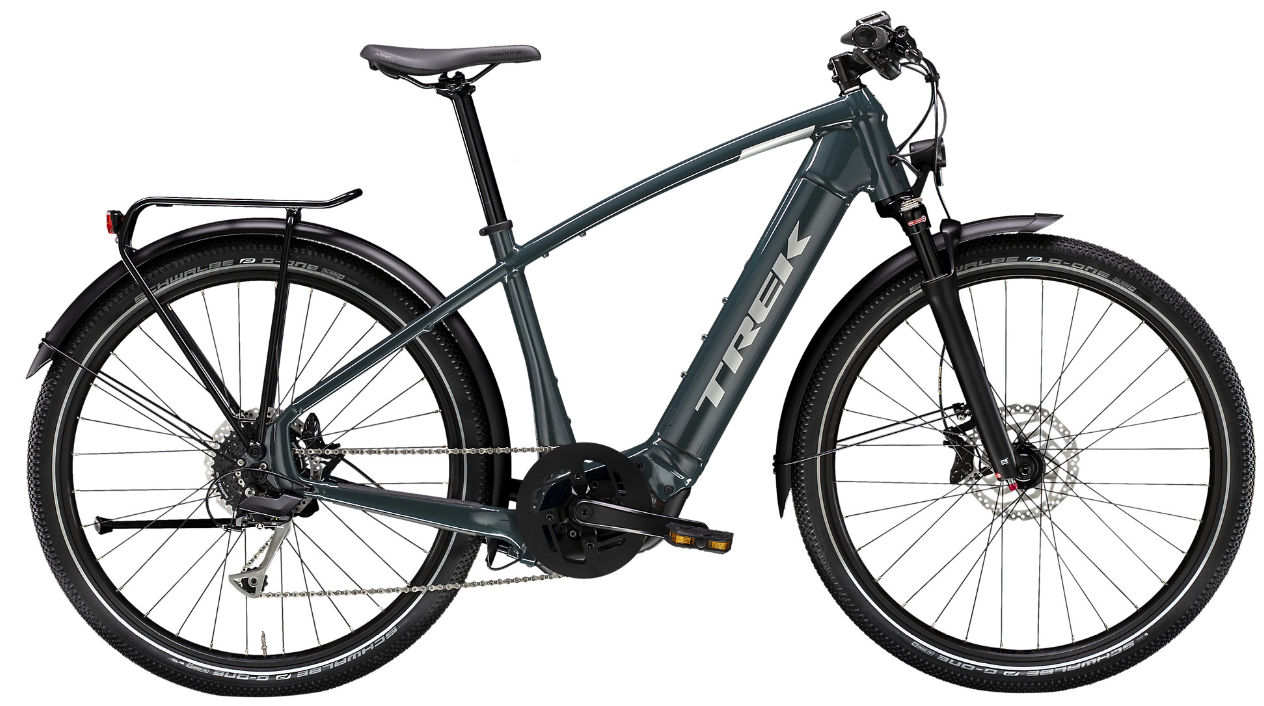

2019 Trek Allant+ Al geometry
Full frame geometry for the 2019 Trek Allant+ Al, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 623 | 405 | 73 | 69.5 | 165 | 595 | 500 | 795 | 60 | 665 | 487 | 1146 | 44 | 86 |
| L | 652 | 408 | 73 | 70 | 195 | 607 | 550 | 837 | 60 | 669 | 487 | 1150 | 44 | 81 |
| XL | 688 | 412 | 73 | 70.5 | 230 | 622 | 600 | 879 | 60 | 683 | 487 | 1164 | 44 | 79 |
All measurements in millimetres unless marked (°) for angles.
