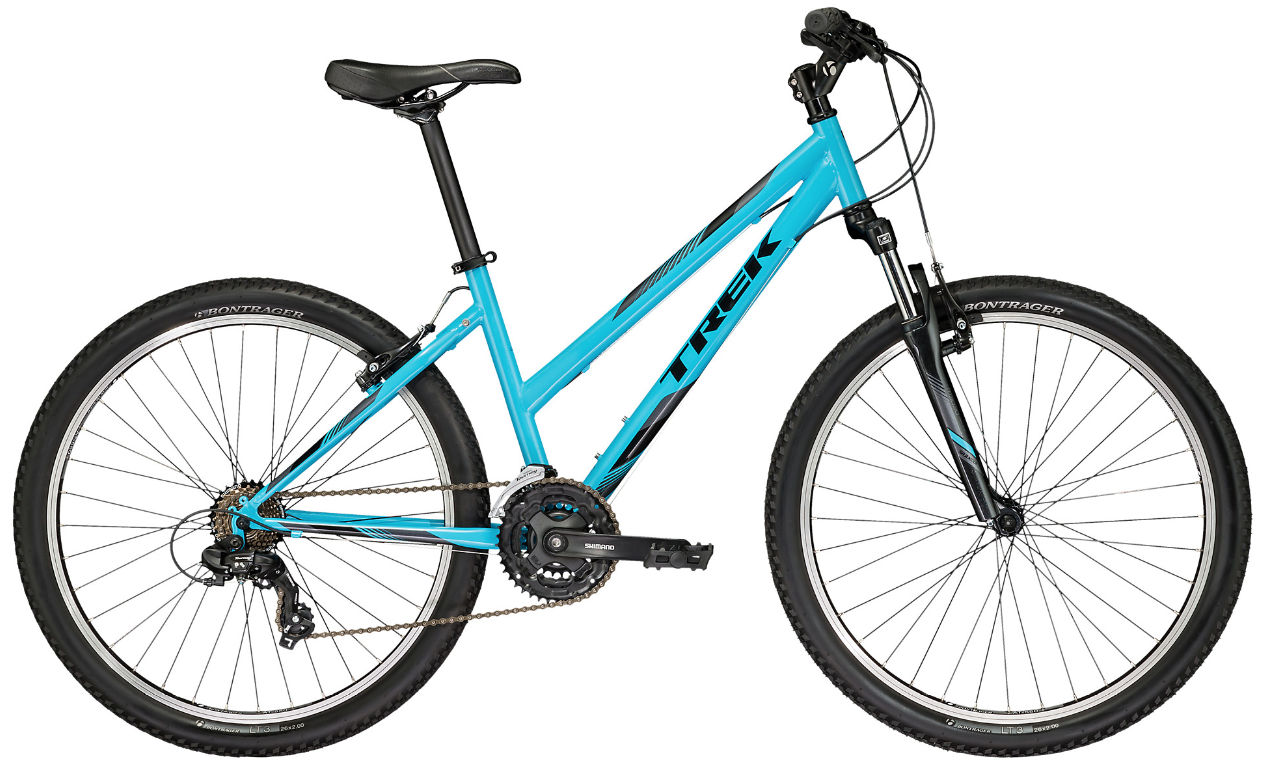

2019 Trek 820 Womens geometry
Full frame geometry for the 2019 Trek 820 Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 544 | 385 | 73.5 | 70.5 | 110 | 546 | 406 | 631 | 30 | 608 | 430 | 1036 | 40 | 76 |
| XS | 544 | 368 | 74 | 70.5 | 110 | 524 | 330 | 655 | 30 | 591 | 430 | 1019 | 40 | 76 |
| L | 601 | 391 | 73 | 70.5 | 170 | 575 | 495 | 625 | 30 | 636 | 430 | 1064 | 40 | 76 |
All measurements in millimetres unless marked (°) for angles.
