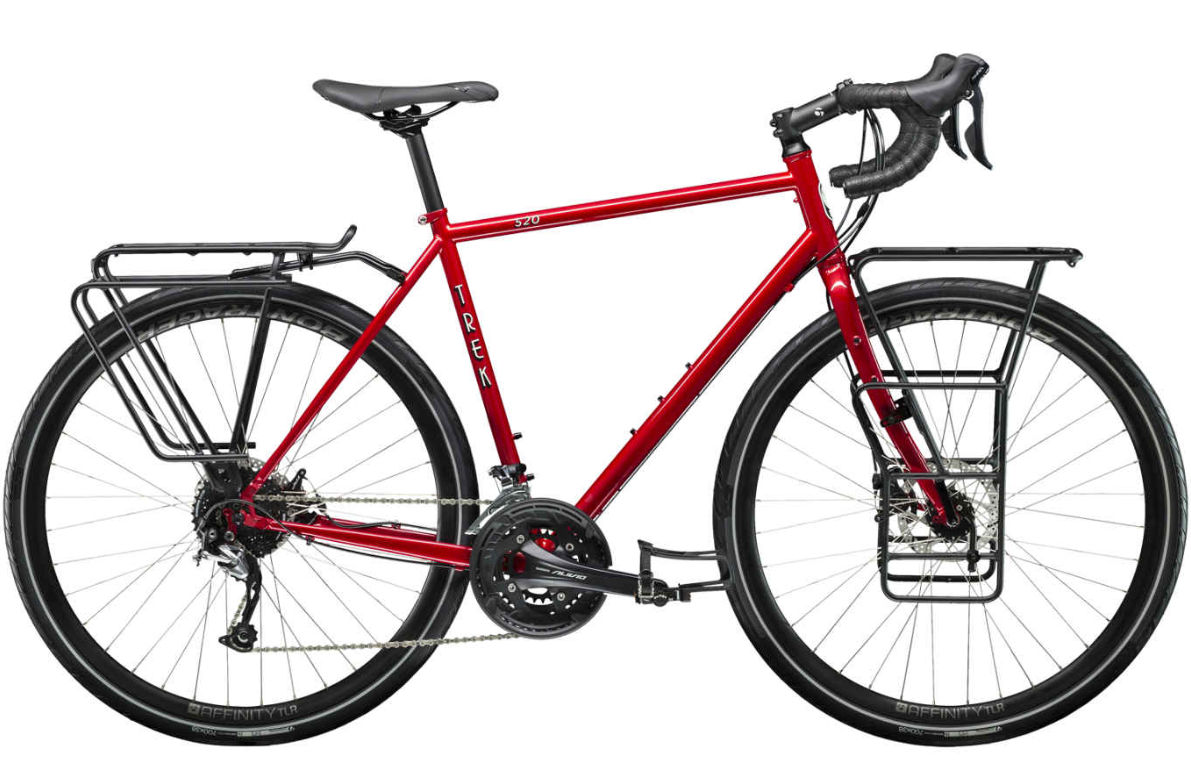

2019 Trek 520 MK II geometry
Full frame geometry for the 2019 Trek 520 MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 540 | 368 | 74.3 | 69.5 | 115 | 520 | 440 | 713 | 75 | 450 | 1041 | 74 |
| 51 | 551 | 373 | 74 | 70 | 125 | 531 | 482 | 741 | 75 | 450 | 1045 | 71 |
| 54 | 565 | 378 | 73.8 | 71 | 140 | 543 | 512 | 768 | 70 | 450 | 1048 | 65 |
| 57 | 587 | 388 | 73.5 | 71.8 | 160 | 557 | 543 | 794 | 70 | 450 | 1052 | 59 |
| 60 | 625 | 392 | 73 | 71.8 | 200 | 583 | 575 | 826 | 70 | 450 | 1074 | 59 |
| 63 | 655 | 400 | 72.8 | 72.3 | 230 | 603 | 605 | 854 | 70 | 450 | 1086 | 56 |
All measurements in millimetres unless marked (°) for angles.
