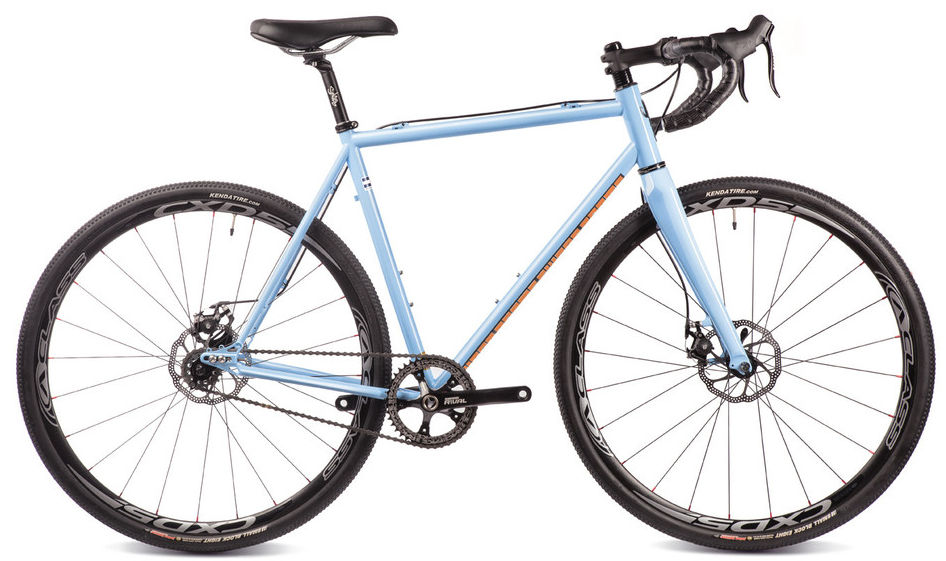

2015 Swobo Scofflaw geometry

Name: 2015 Swobo Scofflaw
Brand: Swobo

Full frame geometry for the 2015 Swobo Scofflaw, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	BB drop (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
48	520	356	73	71	100	515	480	65	425	980	45	73
50	531	358	73	71.5	110	520	500	65	425	987	45	70
52	541	360	73	71.5	120	525	520	65	425	997	45	70
54	561	378	73	72	140	550	540	65	425	1007	45	66
56	571	385	73	72	150	560	560	65	425	1017	45	66
58	580	398	73	72	160	575	580	65	425	1037	45	66
60	609	404	73	72	190	590	600	65	425	1048	45	66

All measurements in millimetres unless marked (°) for angles.
