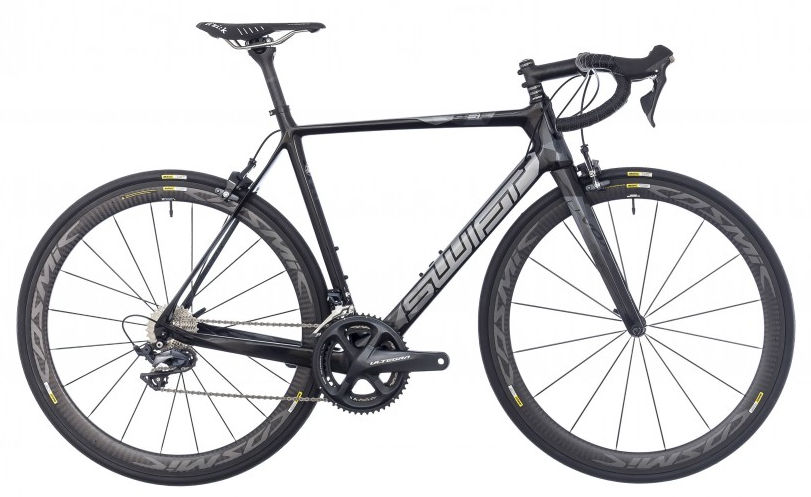

2018 Swift Ultravox SSL geometry
Full frame geometry for the 2018 Swift Ultravox SSL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 480 | 370 | 74.5 | 70.7 | 84 | 505 | 465 | 70 | 408 | 969 | 50 |
| XS | 503 | 376 | 74.1 | 71 | 107 | 521 | 490 | 70 | 408 | 980 | 50 |
| S | 526 | 382 | 73.7 | 71.3 | 130 | 537 | 515 | 70 | 410 | 993 | 50 |
| M | 549 | 388 | 73.3 | 72.6 | 147 | 553 | 540 | 70 | 410 | 997 | 43 |
| L | 572 | 394 | 72.9 | 72.9 | 170 | 570 | 565 | 70 | 412 | 999 | 43 |
| XL | 595 | 400 | 72.5 | 73.2 | 193 | 587 | 590 | 70 | 412 | 1009 | 43 |
All measurements in millimetres unless marked (°) for angles.
