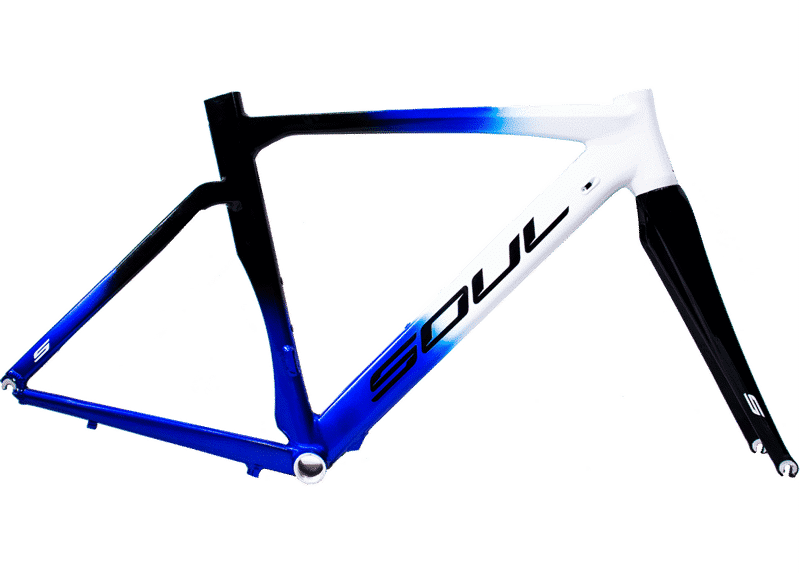

2021 Soul Cycles QUADRO 3R1 AERO geometry
Full frame geometry for the 2021 Soul Cycles QUADRO 3R1 AERO, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 508 | 383 | 74.4 | 71 | 110 | 525 | 480 | 72 | 405 | 980 |
| 50 | 524 | 385 | 74 | 72 | 125 | 535 | 500 | 70 | 405 | 978 |
| 52 | 535 | 386 | 73.5 | 72.5 | 135 | 545 | 520 | 70 | 405 | 979 |
| 54 | 549 | 397 | 73 | 73 | 150 | 565 | 545 | 68 | 408 | 994 |
| 56 | 567 | 428 | 74 | 72.5 | 170 | 590 | 560 | 68 | 410 | 1036 |
All measurements in millimetres unless marked (°) for angles.
