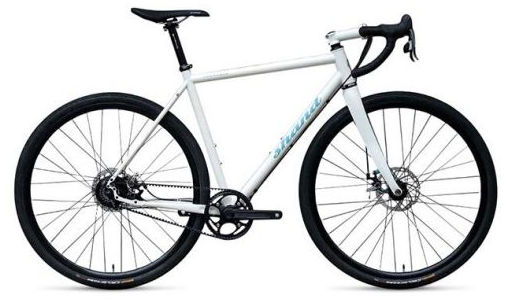

2017 Shand Stooshie geometry
Full frame geometry for the 2017 Shand Stooshie, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 558 | 358 | 74 | 70 | 130 | 520 | 500 | 809 | 68 | 590 | 430 | 1011 | 47 | 74 |
| S | 570 | 368 | 74 | 70.5 | 140 | 534 | 520 | 826 | 68 | 600 | 430 | 1020 | 47 | 72 |
| M | 582 | 380 | 72 | 71.5 | 150 | 570 | 540 | 845 | 68 | 606 | 430 | 1027 | 47 | 66 |
| L | 592 | 390 | 72 | 71.5 | 160 | 582 | 560 | 861 | 68 | 618 | 430 | 1038 | 47 | 66 |
| XL | 619 | 400 | 71.5 | 71.5 | 190 | 607 | 590 | 891 | 68 | 638 | 430 | 1059 | 47 | 66 |
All measurements in millimetres unless marked (°) for angles.
