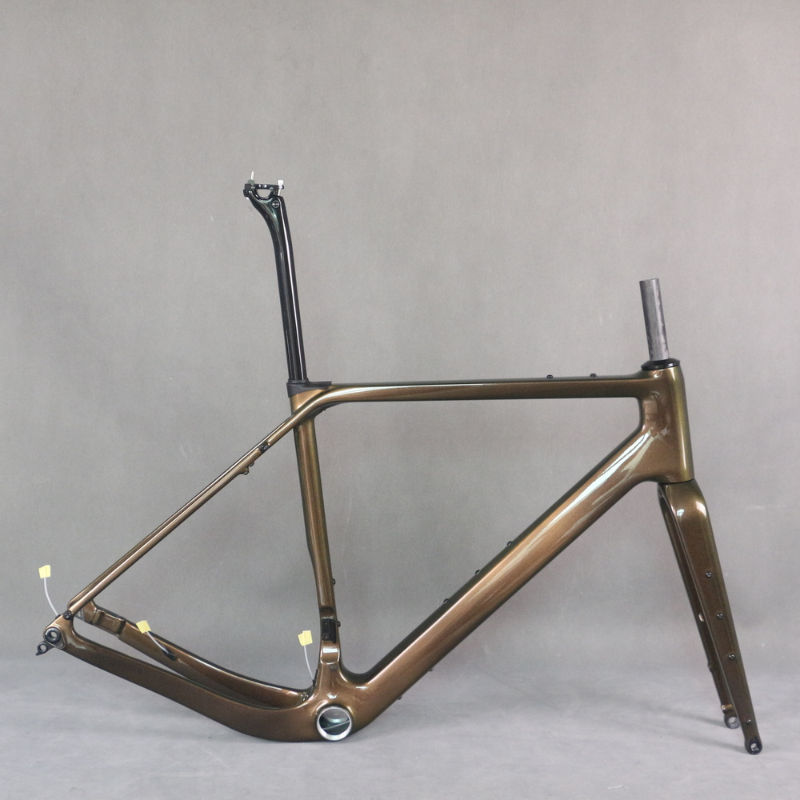

2026 Seraph GR048 geometry
Full frame geometry for the 2026 Seraph GR048, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 537 | 362 | 74.5 | 70 | 110 | 511 | 420 | 75 | 588 | 425 | 1002 | 50 |
| S | 560 | 364 | 74.3 | 70.8 | 130 | 522 | 450 | 75 | 591 | 425 | 1005 | 50 |
| M | 579 | 373 | 74 | 71 | 150 | 539 | 480 | 75 | 604 | 425 | 1018 | 50 |
| L | 600 | 381 | 73.8 | 71.3 | 170 | 556 | 500 | 75 | 616 | 425 | 1030 | 50 |
| XL | 620 | 389 | 72.5 | 71.3 | 190 | 573 | 520 | 75 | 631 | 425 | 1045 | 50 |
All measurements in millimetres unless marked (°) for angles.
