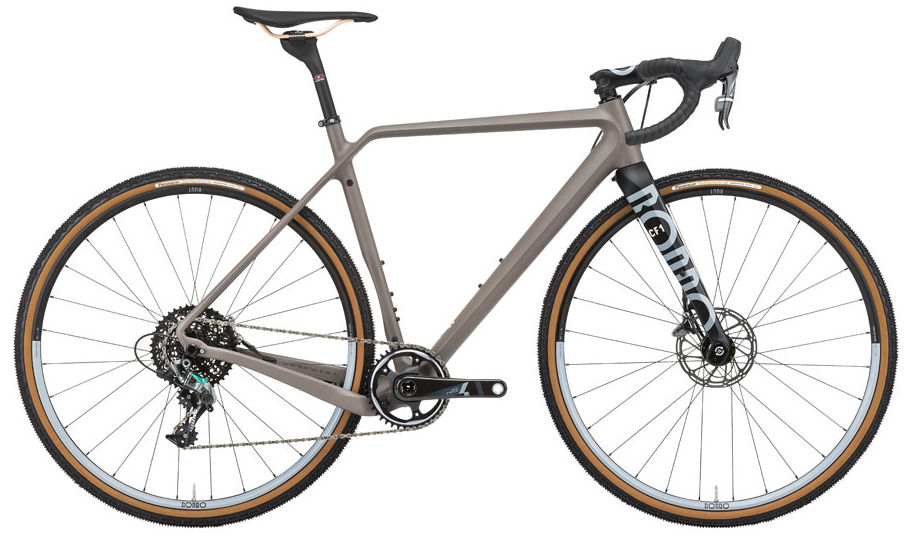

2018 Rondo RUUT CF geometry
Full frame geometry for the 2018 Rondo RUUT CF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S-High | 533 | 373 | 73 | 70.5 | 110 | 536 | 495 | 768 | 70 | 591 | 420 | 1001 | 45 | 77 |
| S-Low | 534 | 381 | 73.5 | 71 | 110 | 538 | 495 | 764 | 74 | 601 | 420 | 1010 | 55 | 63 |
| M-High | 554 | 382 | 73 | 71.5 | 130 | 551 | 530 | 797 | 70 | 596 | 420 | 1006 | 45 | 70 |
| M-Low | 555 | 388 | 73.5 | 72 | 130 | 553 | 530 | 793 | 74 | 606 | 420 | 1015 | 55 | 56 |
| L-Low | 572 | 397 | 73.5 | 72 | 160 | 571 | 560 | 822 | 74 | 625 | 420 | 1034 | 55 | 56 |
| L-High | 582 | 391 | 73 | 71.5 | 160 | 569 | 560 | 826 | 70 | 615 | 420 | 1025 | 45 | 70 |
| XL-Low | 601 | 406 | 73.5 | 72 | 180 | 586 | 590 | 847 | 74 | 640 | 420 | 1049 | 55 | 56 |
| XL-High | 606 | 400 | 73 | 71.5 | 180 | 584 | 590 | 851 | 70 | 630 | 420 | 1040 | 45 | 70 |
All measurements in millimetres unless marked (°) for angles.
