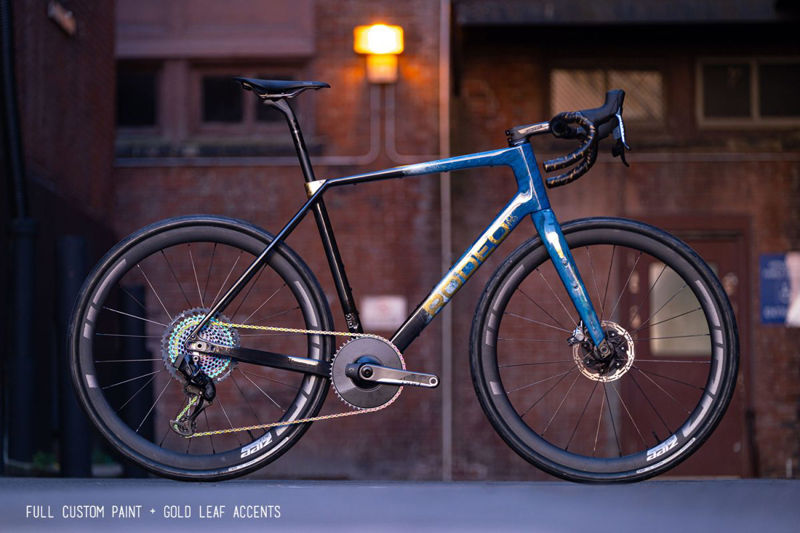

2023 Rodeo Labs Traildonkey 4.0 geometry
Full frame geometry for the 2023 Rodeo Labs Traildonkey 4.0, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 538 | 366 | 74 | 70 | 125 | 520 | 450 | 65 | 595 | 435 | 1022 | 50 |
| 54 | 559 | 374 | 74 | 71 | 145 | 540 | 470 | 65 | 606 | 435 | 1032 | 50 |
| 56 | 578 | 386 | 73 | 72 | 160 | 563 | 490 | 65 | 609 | 435 | 1036 | 45 |
| 58 | 595 | 393 | 73 | 72 | 175 | 581 | 520 | 65 | 616 | 435 | 1043 | 45 |
| 61 | 625 | 408 | 73 | 72 | 207 | 605 | 540 | 65 | 641 | 435 | 1067 | 45 |
All measurements in millimetres unless marked (°) for angles.
