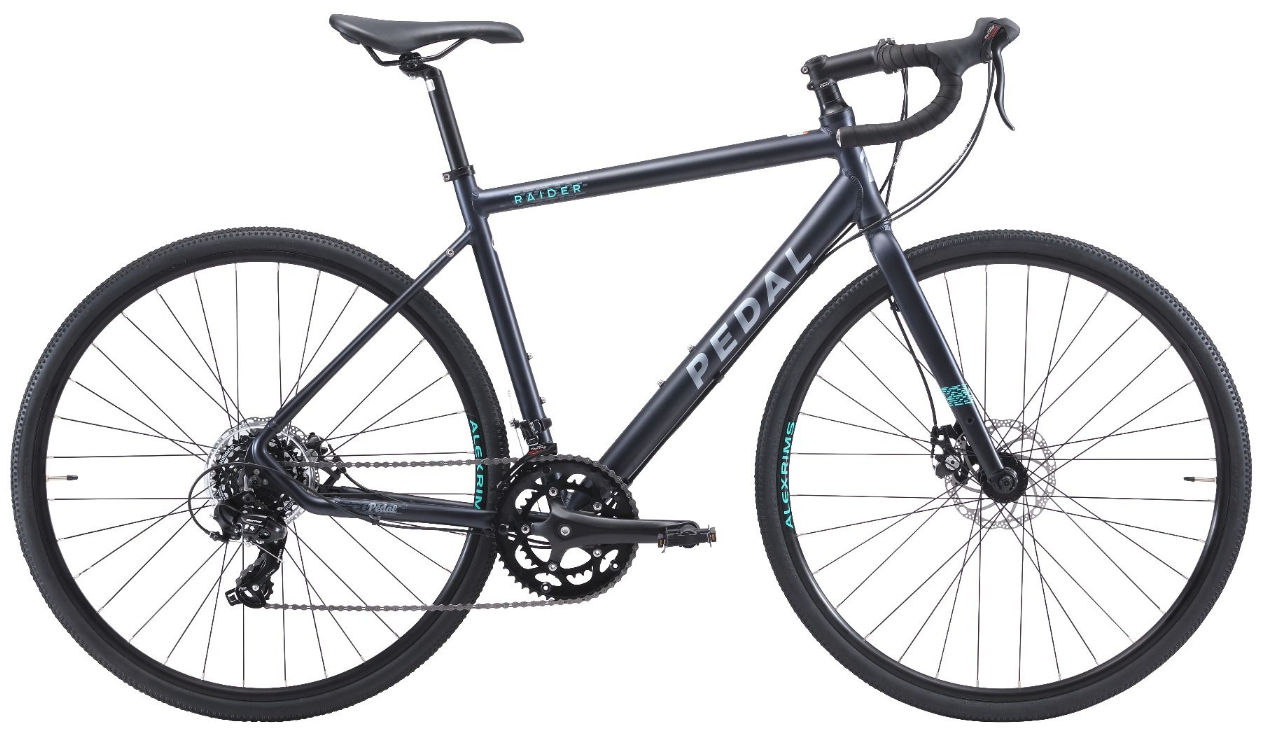

2018 Pedal Raider geometry
Full frame geometry for the 2018 Pedal Raider, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 557 | 369 | 74 | 69.6 | 145 | 529 | 490 | 797 | 70 | 602 | 430 | 1023 | 45 | 81 |
| M | 574 | 375 | 73.5 | 70.2 | 160 | 545 | 520 | 822 | 70 | 608 | 430 | 1028 | 45 | 77 |
| L | 595 | 379 | 73 | 70.8 | 180 | 561 | 550 | 849 | 70 | 614 | 430 | 1034 | 45 | 73 |
| XL | 612 | 385 | 72.5 | 71.4 | 195 | 578 | 580 | 874 | 70 | 618 | 430 | 1039 | 45 | 69 |
All measurements in millimetres unless marked (°) for angles.
