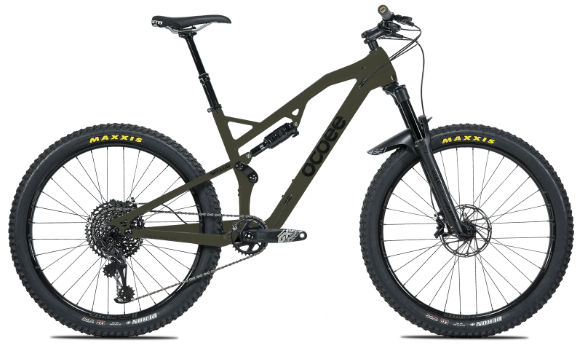

2019 Ocoee Seclud geometry
Full frame geometry for the 2019 Ocoee Seclud, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 589 | 412 | 75 | 67 | 105 | 570 | 393 | 24 | 708 | 445 | 1152 | 51 |
| M | 603 | 429 | 75 | 67 | 120 | 590 | 444 | 24 | 730 | 445 | 1174 | 51 |
| L | 612 | 446 | 75 | 67 | 130 | 610 | 482 | 24 | 751 | 445 | 1195 | 51 |
All measurements in millimetres unless marked (°) for angles.
