2013 Nud Scout geometry

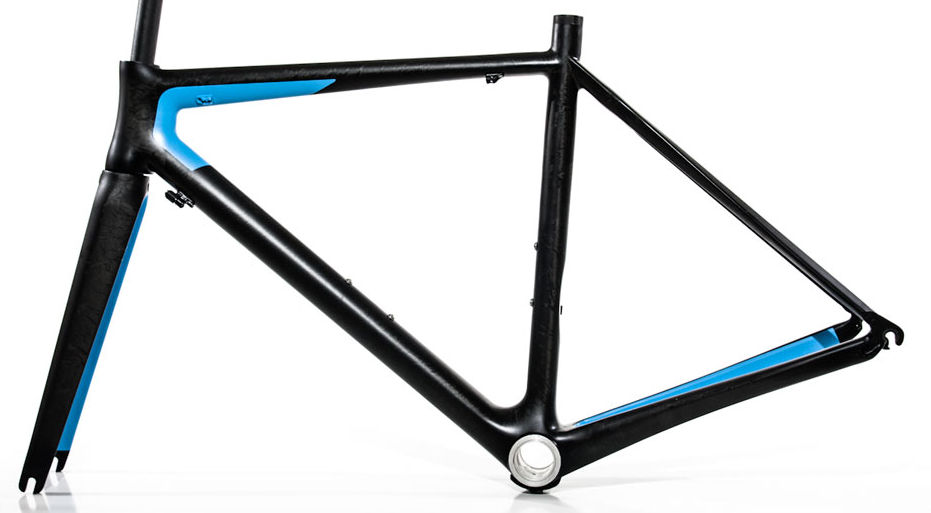

Name: 2013 Nud Scout
Brand: Nud

Full frame geometry for the 2013 Nud Scout, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
46	540	357	74	71.5	125	512	460	72	561	403	957	43	66
48	540	357	74	71.5	125	512	480	72	561	403	957	43	66
50	546	369	74.5	72	130	520	500	72	570	403	966	43	63
52	549	367	73.5	72	135	530	520	71	569	403	967	43	63
54	558	369	73	72	145	540	540	70	575	403	972	43	63
56	572	380	73	72	160	555	560	70	590	403	987	43	63
58	582	397	73	72	170	575	580	70	610	403	1007	43	63
61	591	414	72.5	72	180	600	610	70	630	403	1027	43	63

All measurements in millimetres unless marked (°) for angles.
