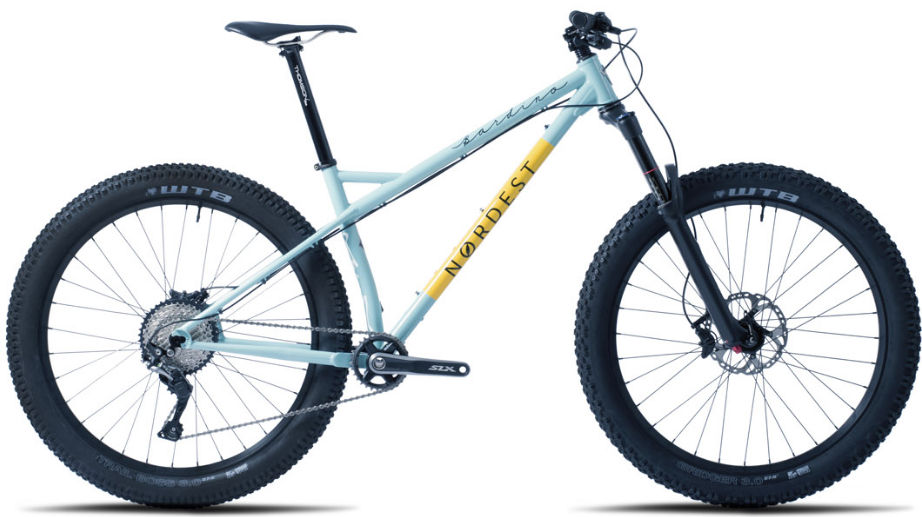

2017 Nordest Bardino geometry
Full frame geometry for the 2017 Nordest Bardino, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 630 | 438 | 74.5 | 65 | 105 | 620 | 425 | 841 | 55 | 765 | 425 | 1184 |
| ML | 639 | 455 | 74.5 | 65 | 115 | 639 | 450 | 858 | 55 | 786 | 425 | 1205 |
| L | 643 | 475 | 74.6 | 65 | 120 | 659 | 480 | 876 | 55 | 807 | 425 | 1227 |
All measurements in millimetres unless marked (°) for angles.
